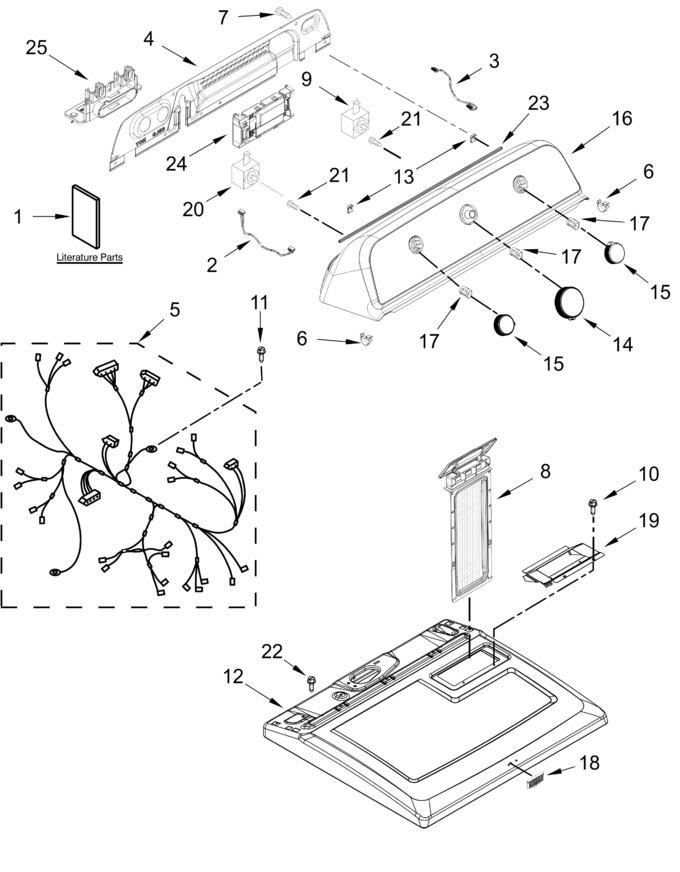

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11791187 | Harness, Encoder (left) (Replaces: W11679933) |
|
- | |||||
| 3 | W11791188 | Harness, Encoder (right) (Replaces: W11685081) |
|
- | |||||
| 4 | W11783798 | Panel, Rear (Replaces: W11707561) |
|
- | |||||
| 5 | W11799220 | Harness, Main (Replaces: W11679895) |
|
- | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 8.47 | ||||
| 8 | W11778254 | Lint Screen (white) (Replaces: W11713538) |
|
Immediately | $ 54.63 | ||||
| 9 | WPW10414397 | Switch, Rotary Encoder (3 Position) (Replaces: W10414397) |
|
$ 136.10 | |||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 11 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 12 | W11783727 | Top (white) (Replaces: W11683264) |
|
$ 195.37 | |||||
| 13 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 8.13 | |||||
| 14 | W11782259 | Knob Assembly (large) (Replaces: W11739935) |
|
- | |||||
| 15 | W11782279 | Assembly, Knob (small) (Replaces: W11663221) |
|
- | |||||
| 16 | W11791186 | Assembly, Console (white) (Replaces: W11678545) |
|
$ 185.22 | |||||
| 17 | W11788153 | Clip, Spring (Replaces: W11778059) |
|
- | |||||
| 18 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 19 | W10662472 | Collar, Lint Chute |
|
$ 77.87 | |||||
| 20 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 199.56 | |||||
| 21 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 22 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 23 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 24 | W11791185 | Appliance Control Unit (acu) (Replaces: W11681501) |
|
Immediately | $ 295.70 | ||||
| 25 | W11627417 | Connector, Service Standalone (Replaces: W11438904) |
|
$ 25.63 | |||||
| W11679948 | Quick Start Guide |
|
- | ||||||
| W11679946 | Owners Manual |
|
- | ||||||
| W11679950 | Tech Sheet |
|
- |
