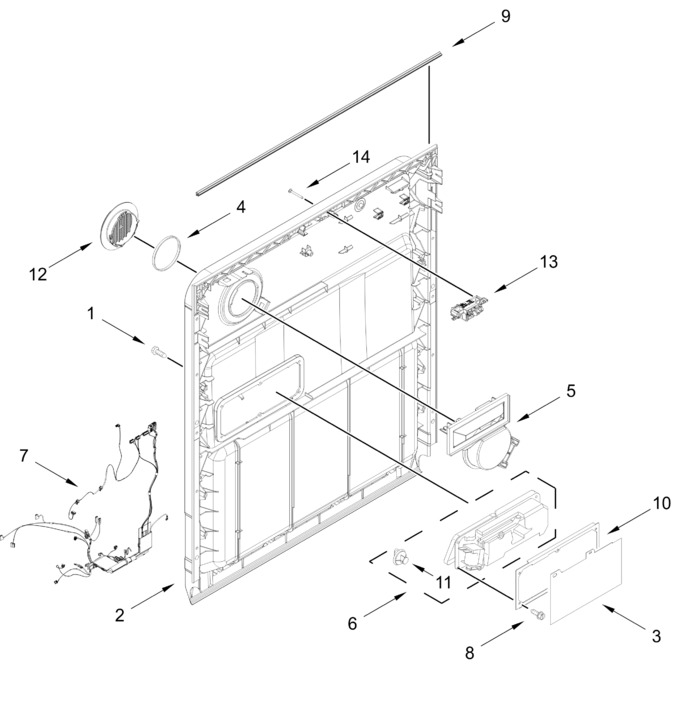

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
2	W11676896		Inner Door   (Replaces: W11467680)			Immediately	$ 349.21
3	WPW10482094		Cover, Dispenser   (Replaces: W10482094)			Immediately	$ 32.36
4	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
5	WPW10329609		Vent Assembly (also Order Vent Gasket)   (Replaces: W10329609)			Immediately	$ 123.62
6	W11820247		Dispenser, Assembly   (Replaces: W11651626)			Immediately	$ 127.67
7	W11697180		Wiring Harness   (Replaces: W11595229)		Appelez-nous	-
8	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
9	W10837566		Seal, Console/door   (Replaces: W10274923)			Immediately	$ 86.84
10	WPW10462232		Bracket, Dispenser   (Replaces: W10462232)				$ 37.79
11	WPW10524922		Cap, Rinse Aid   (Replaces: W10524922)				$ 49.58
12	WPW10334900		Bezel, Vent   (Replaces: W10334900)				$ 45.85
13	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10574864)			Immediately	$ 34.18
14	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.55
