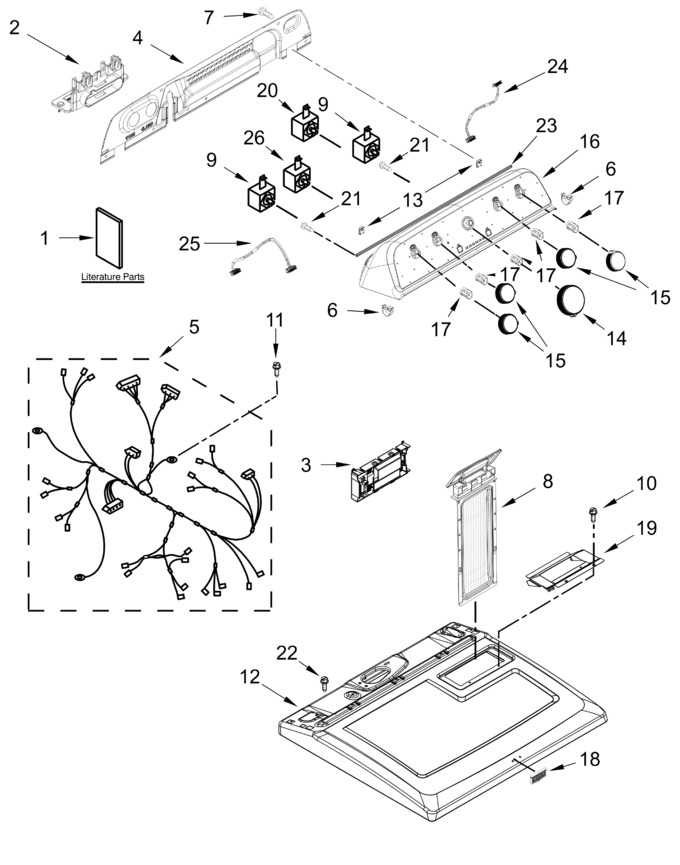

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Bulkhead Parts
Burner Assembly Parts
Cabinet Parts
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11627417 | Connector, Service Standalone (Replaces: W11438904) |
|
$ 24.41 | |||||
| 3 | W11797455 | Appliance Control Unit (acu) (Replaces: W11756863) |
|
- | |||||
| 4 | W10775189 | Panel, Rear |
|
$ 371.55 | |||||
| 5 | W11765025 | Harness, Main (Replaces: W11607806) |
|
- | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 8 | W11778254 | Lint Screen (white) (Replaces: W11713538) |
|
Immediately | $ 52.03 | ||||
| 9 | W11168256 | Switch, Rotary Encoder (2 Position) (Replaces: W10414381) |
|
Immediately | $ 208.68 | ||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 11 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 7.82 | ||||
| 12 | W11222514 | Top (white) (Replaces: W10613389) |
|
Immediately | $ 196.23 | ||||
| 13 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 7.74 | |||||
| 14 | W11675852 | Knob, Large (Replaces: W11328381) |
|
Immediately | $ 29.75 | ||||
| 15 | W11625514 | Push To Start Knob (white) (Replaces: W11398762) |
|
Immediately | $ 35.11 | ||||
| 16 | W11815007 | Assembly, Console (white) (Replaces: W11745382) |
|
$ 302.26 | |||||
| 17 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 18 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 40.34 | ||||
| 19 | W10662472 | Collar, Lint Chute |
|
$ 74.16 | |||||
| 20 | WPW10414397 | Switch, Rotary Encoder (3 Position) (Replaces: W10414397) |
|
$ 129.62 | |||||
| 21 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 22 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 23 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 24 | W11486550 | Harness, Upper Encoder (rs) |
|
$ 65.39 | |||||
| 25 | W11437795 | Harness, Upper Encoder (ls) |
|
$ 63.19 | |||||
| 26 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 190.06 | |||||
| W11495041 | Tech Sheet |
|
- | ||||||
| W11361424 | Owners Manual |
|
- | ||||||
| W11756494 | Quick Start Guide |
|
- |
