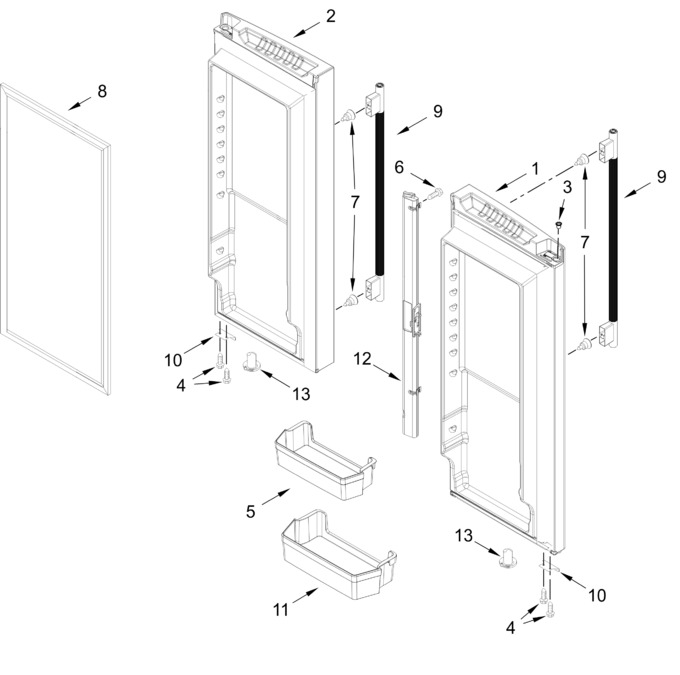

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11826497 | Left Door Assembly (stainless) (Replaces: W11789179) |
|
$ 474.27 | |||||
| 2 | W11826496 | Right Door Assembly (stainless) (Replaces: W11789178) |
|
$ 474.27 | |||||
| 3 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 4 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 5 | W11808087 | Bin, Door (medium) (Replaces: W11783260) |
|
Immediately | $ 50.84 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 16.12 | ||||
| 8 | W10830046 | Gasket, Door (grey) |
|
$ 252.05 | |||||
| 9 | W11759446 | Door Handle (stainless) (Replaces: W11682895) |
|
Immediately | $ 128.15 | ||||
| 10 | WPW10120097 | Stop, Door (grey) (Replaces: W10120097) |
|
$ 7.92 | |||||
| 11 | W11808088 | Bin, Door (gallon) (Replaces: W11783263) |
|
$ 50.84 | |||||
| 12 | W11177238 | Mullion, Door (grey) (Replaces: W11128563) |
|
Immediately | $ 208.69 | ||||
| 13 | WP12028505AP | Closer, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 58.09 |
