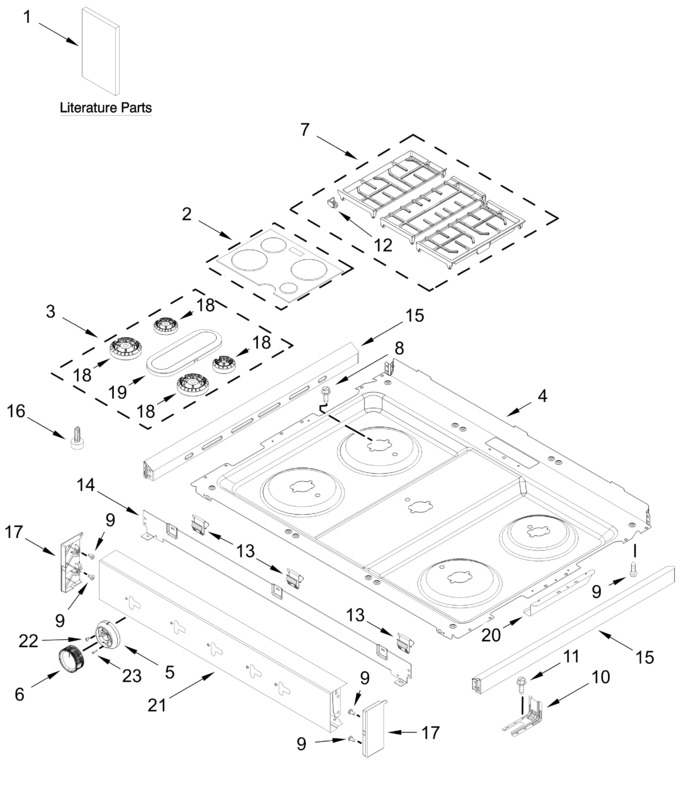

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11605759		Burner Cap Kit (black)   (Replaces: W11498499)			Immediately	$ 75.35
3	W11662402		Burner Kit   (Replaces: W11367106)			Immediately	$ 130.11
4	W11730436		Cooktop (black)   (Replaces: W11279788)				$ 386.03
5	W11771189		Bezel (stainless)   (Replaces: W11365062)		Appelez-nous	-
6	W11771191		Knob (stainless)   (Replaces: W11594133)				$ 54.33
7	W11771184		Grate, Kit (black)   (Replaces: W11720128)				$ 464.47
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11729100		Grate, Bumper   (Replaces: W11672010)				$ 13.71
13	W11728827		Spring, Clip   (Replaces: W11637551)		Appelez-nous	-
14	W11750421		Cooktop, Front Bracket   (Replaces: W11736687)		Appelez-nous	-
15	W11729931		Cooktop, Frame Bracket (black)   (Replaces: W11367962)				$ 171.56
16	8016P02260		Glide, Main Top		Appelez-nous	-
17	W11773185		Manifold, Endcap (left)   (Replaces: W11608558)				$ 69.72
18	W11531096		Flame Spreader   (Replaces: W11352193)				$ 81.92
19	W11548764		Spreader, Flame (fish)   (Replaces: W11357364)				$ 161.72
20	W11728390		Bracket, Spark Module   (Replaces: W11366598)		Appelez-nous	-
21	W11784061		Panel, Manifold (stainless)   (Replaces: W11694078)			Immediately	$ 554.44
22	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
23	W11674763		Screw   (Replaces: W10919387)				$ 14.76
	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
	W11794296		Tech Sheet		Appelez-nous	-
	3196896		Clip, Wire		Appelez-nous	-
	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
	ARI68146C2FADA8E1AE3122F181AC9275E2		(left Front, Right Front)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11794742		Quick Start Guide		Appelez-nous	-
	W11794739		Owner's Manual		Appelez-nous	-
	W11781582		Harness, Rear   (Replaces: W11385156)		Appelez-nous	-
	W11773186		Manifold, Endcap (right)   (Replaces: W11608559)				$ 69.72
	W11730272		Harness, Bake   (Replaces: W11454086)			Immediately	$ 59.10
	W11730263		Harness, Main   (Replaces: W11334462)		Appelez-nous	-
	ARI7A67B14AEA62F6D2A04BCF7D52CA12EE		(center)		Appelez-nous	-
	W11531098		Flame Spreader   (Replaces: W11352197)				$ 80.72
	W11531097		Flame Spreader   (Replaces: W11352195)				$ 81.15
