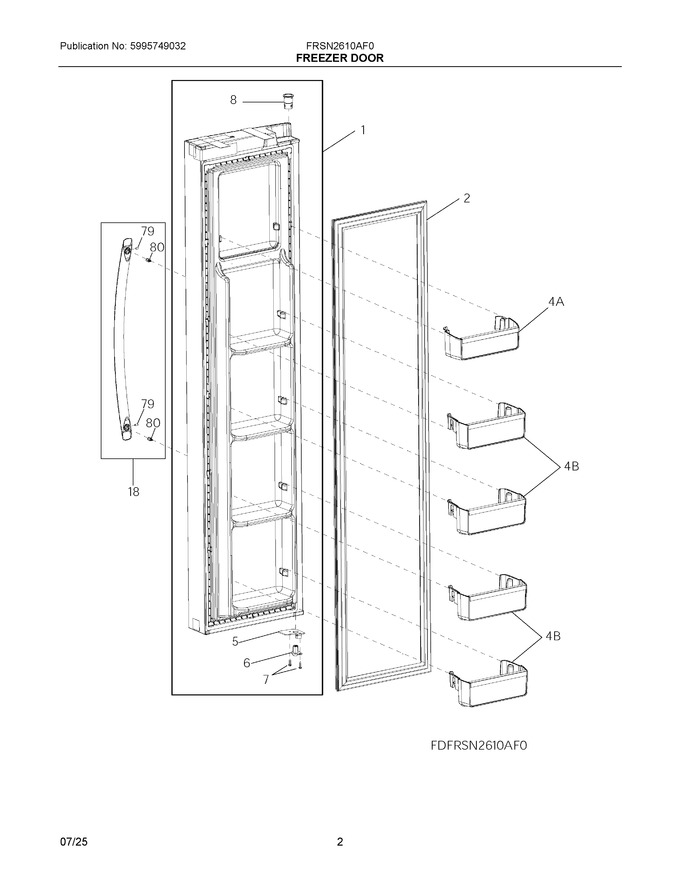

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537323		Door Assembly, Freezer, Stainless, Complete				$ 349.32
2	241786014		Gasket Assembly, Freezer Door				$ 105.74
5	241990202		Door Stop, Black, Freezer, Lower			Immediately	$ 23.63
6	241990302		Bearing Hinge, Lower, Freezer Door, Closer				$ 7.88
7	240442708		Screw, #10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 9.27
8	241760402		Bearing, Hinge, Top				$ 21.26
18	5304531229		Handle, Door, Stainless, Fresh Food			Immediately	$ 170.10
25	5304539493		Glass Shelf, Assembly, Freezer, Lower				$ 22.46
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 36.67
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
4A	5304536364		Bin Assembly, Pseudo, Upper   (Replaces: 5304525907)				$ 28.67
4B	5304536365		Bin Assembly, Pseudo, Lower   (Replaces: 5304525908)			Immediately	$ 28.50
NI	218515401		Clip, Grille/tube, & Hinge				$ 19.69
