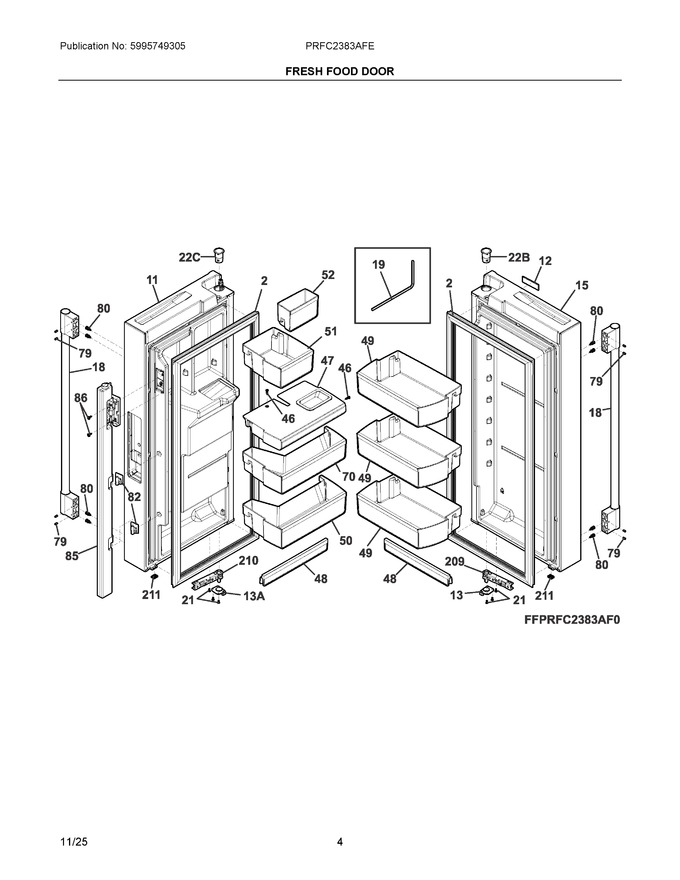

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-dr, Magnetic Ff Wh 36 |
|
Immediately | $ 99.87 | ||||
| 11 | 5304537106 | Door Foamed Ff Lh |
|
$ 494.73 | |||||
| 12 | 809108704 | Badge, Frigidaire Pro |
|
Immediately | $ 49.10 | ||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 25.34 | |||||
| 15 | 5304537105 | Door Foamed Ff Rh, 15 |
|
$ 357.82 | |||||
| 18 | 5304536933 | S/a Pur-handle Horizontal Pro (Replaces: 5304535091) |
|
Immediately | $ 133.30 | ||||
| 19 | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 23.71 | ||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 46 | 241941202 | Screw, 8-18 X 3/8 |
|
$ 16.85 | |||||
| 47 | 5304535834 | Ice Chute Bracket |
|
- | |||||
| 48 | 5304539201 | Door Lower Bin (strap) |
|
Immediately | $ 17.43 | ||||
| 49 | 5304536414 | Door Bin, Standard, Rh |
|
Immediately | $ 60.86 | ||||
| 50 | 5304536416 | Lh - Door 2 Liter Bin |
|
- | |||||
| 51 | 5304536418 | Lh - Door 2 Liter Bin |
|
$ 31.36 | |||||
| 52 | 5304533093 | Door Bin, Slim Disp, Lh Door |
|
Immediately | $ 21.67 | ||||
| 70 | 5304536417 | Door-dairy, Bin |
|
$ 29.16 | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 5304537280 | Screw Mount Handle Hydra |
|
- | |||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 24.43 | ||||
| 85 | 5304530853 | Mullion Assembly, Flipper, Gray, 85 #, W/heater |
|
Immediately | $ 124.68 | ||||
| 86 | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| 209 | 5304526201 | Rh Door Closer W/o Inner Washr |
|
Immediately | $ 94.36 | ||||
| 210 | 5304526202 | Lh Door Closer W/o Inner Washr |
|
Immediately | $ 109.27 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 13.48 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 25.28 | ||||
| 22B | 241760403 | Bearing, Hinge, Top, Rh Door |
|
Immediately | $ 21.26 | ||||
| 22C | 241760401 | Bearing, Hinge, Top, Lh Door |
|
Immediately | $ 21.26 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIA | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.83 | |||||
| NIA | 5304537197 | Harness Dispenser Door Pro |
|
- |
