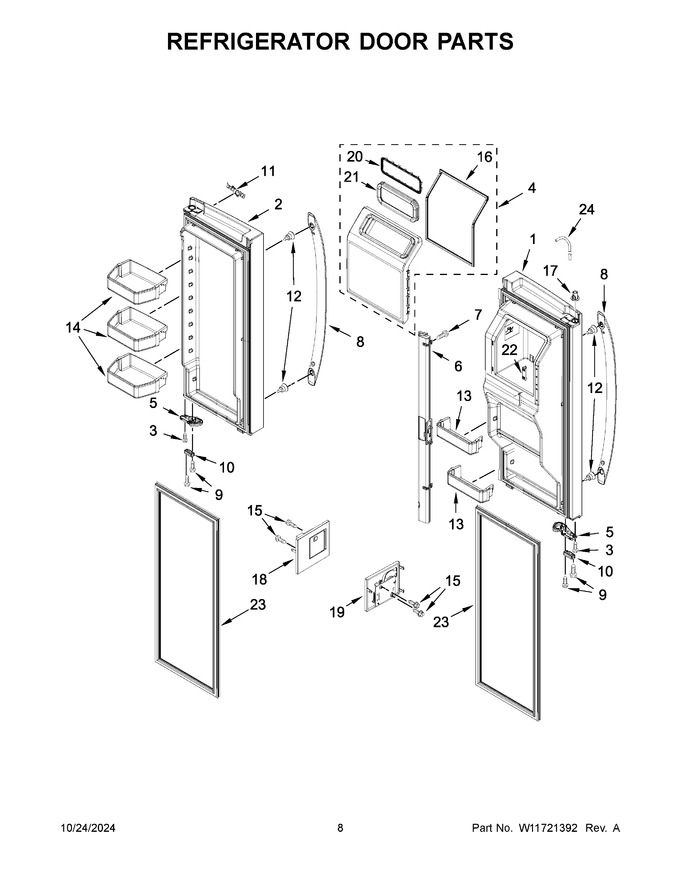

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11518735 | Door, Left (includes Gasket) (black Stainless) (Replaces: W11405219) |
|
$ 1,133.31 | |||||
| 2 | W11104459 | Door, Right (includes Gasket) (black Stainless) (Replaces: W11036468) |
|
$ 959.95 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W11171728 | Assembly, Ice Door (Replaces: W10549592) |
|
$ 216.44 | |||||
| 5 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 18.04 | |||||
| 6 | W10698196 | Mullion, Door (black) |
|
$ 145.06 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11125624 | Handle, Door (black Stainless) (Replaces: W11101972) |
|
$ 190.44 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 13 | W11366475 | Trivet, 2 Liter (Replaces: W10728185) |
|
Immediately | $ 80.10 | ||||
| 14 | W11371716 | Bin, Gallon (Replaces: W10728194) |
|
Immediately | $ 167.63 | ||||
| 15 | 2006254 | Screw (Replaces: 12993001) |
|
$ 13.79 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 69.41 | |||||
| 17 | W11315302 | Clip, Tube |
|
- | |||||
| 18 | W11751996 | Board And Cover Assembly, Emitter (Replaces: W11554030) |
|
$ 328.97 | |||||
| 19 | W11751997 | Board And Cover Assembly, Receiver (Replaces: W11554032) |
|
$ 328.97 | |||||
| 20 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 32.32 | |||||
| 21 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 48.97 | |||||
| 22 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 23.16 | ||||
| 23 | W10861004 | Gasket, Door (black) (Replaces: W10873939) |
|
$ 331.17 | |||||
| 24 | WPW10499015 | Tube, Water (Replaces: W10499015) |
|
$ 128.77 | |||||
| 5A | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 17.59 |
