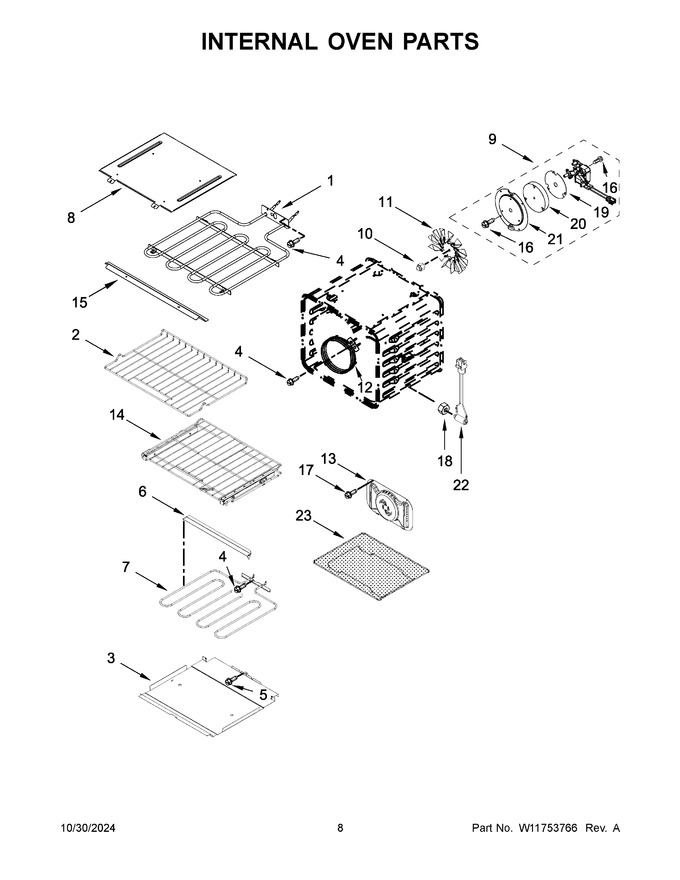

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598122 | Element, Broil (Replaces: W11238159) |
|
$ 130.69 | |||||
| 2 | WPW10554526 | Rack, Oven (Replaces: W10554526) |
|
Immediately | $ 182.96 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | 7101P43460 | Screw |
|
- | |||||
| 5 | 7101P42660 | Screw |
|
- | |||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W11292248) |
|
Immediately | $ 102.53 | ||||
| 8 | W11598121 | Reflector, Broil (Replaces: W11235537) |
|
$ 62.19 | |||||
| 9 | W11617227 | Convect Motor Assembly (Replaces: W11398058) |
|
Immediately | $ 159.60 | ||||
| 10 | W11548755 | Nut, Acorn (lh) (Replaces: W11433702) |
|
$ 15.38 | |||||
| 11 | W11548753 | Blade, Fan (Replaces: W11425715) |
|
Immediately | $ 157.63 | ||||
| 12 | W11678579 | Element, Convection (Replaces: W10546519) |
|
Immediately | $ 121.00 | ||||
| 13 | W11234761 | Baffle, Bow Tie (Replaces: W10819989) |
|
$ 237.00 | |||||
| 14 | W11718046 | Rack, Sliding (Replaces: W10554531) |
|
Immediately | $ 173.45 | ||||
| 15 | W10588737 | Shield, Broil Front |
|
$ 105.40 | |||||
| 16 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.77 | |||||
| 17 | WP74003976 | Screw (Replaces: W10906658) |
|
$ 7.55 | |||||
| 18 | W11231343 | Nut, Locking (Replaces: W11033111) |
|
$ 13.47 | |||||
| 19 | W11602629 | Plate, Convect Motor (Replaces: W11251715) |
|
- | |||||
| 20 | W11706806 | Insulation, Convect Motor (Replaces: W11251716) |
|
- | |||||
| 21 | W11617229 | Cover, Convect Plate (Replaces: W11398057) |
|
- | |||||
| 22 | W11821374 | Jack, Meat Probe (Replaces: W11252826) |
|
$ 77.18 | |||||
| 23 | W11692811 | Basket, Airfry (Replaces: W11661815) |
|
Immediately | $ 117.69 |
