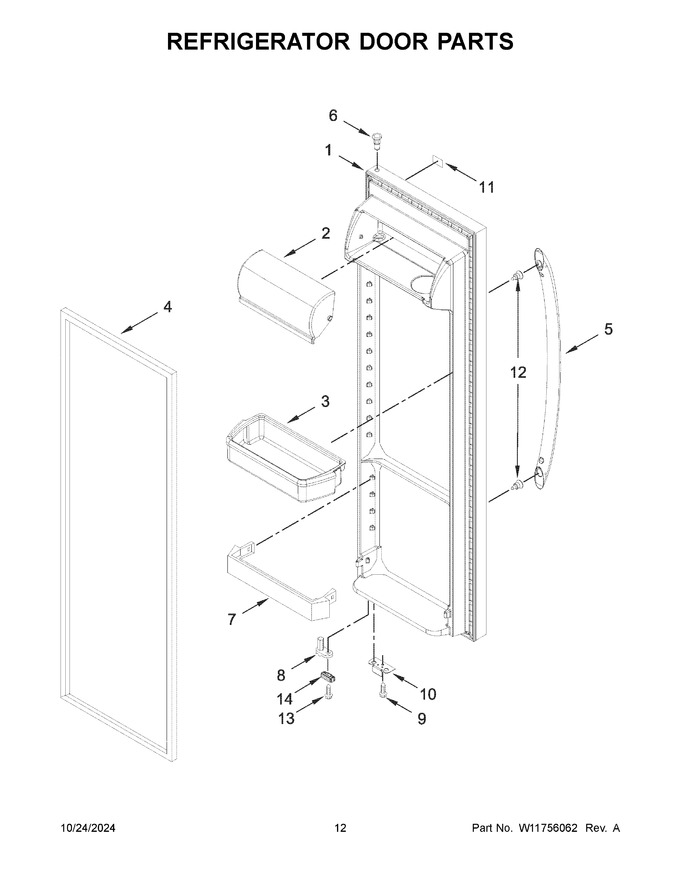

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10912126 | Door, Refrigerator (includes Door Gasket) (black) (Replaces: W10912126) |
|
$ 847.07 | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | W11174793 | Bin, Door (Replaces: W11034658) |
|
$ 161.02 | |||||
| 4 | 2159083 | Gasket, Door (black) (Replaces: W10911422) |
|
$ 251.49 | |||||
| 5 | W10918557 | Handle (black) (Replaces: W10891379) |
|
$ 189.54 | |||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 13.79 | |||||
| 9 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 10 | W11557261 | Bracket, Door Stop (Replaces: W11481760) |
|
Immediately | $ 18.67 | ||||
| 11 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 14 | W10407187 | Bumper, Door (black) |
|
$ 48.34 |
