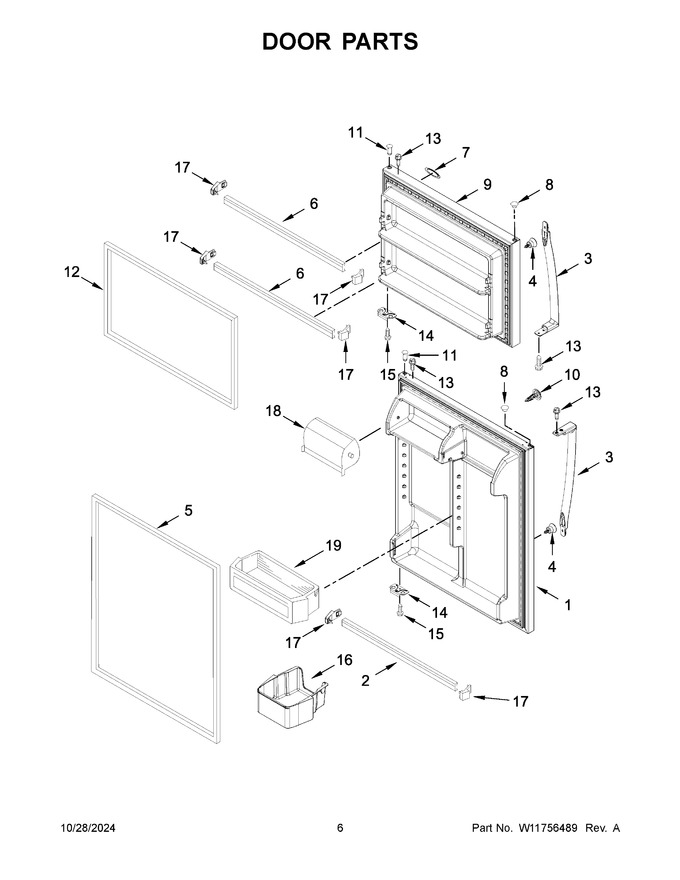

| 1 | LW10646224 | Refrigerator Door (includes Door Gasket) (white) (Replaces: W10646224) |
|
$ 848.03 | |||||
| 2 | W11126062 | Trim, Door (Replaces: W10592148) |
|
$ 127.34 | |||||
| 3 | W10837577 | Handle, Door (white) (Replaces: W10580723) |
|
Immediately | $ 106.24 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | W10860480 | Gasket, Door (white) (Replaces: W11406596) |
|
$ 309.74 | |||||
| 6 | W10592150 | Trim, Door |
|
$ 125.96 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | WP2212648 | Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 9 | LW10646225 | Freezer Door (includes Door Gasket) (white) (Replaces: W10646225) |
|
$ 842.50 | |||||
| 10 | W10830984 | Plug, Hole (white) (Replaces: W10663736) |
|
$ 8.38 | |||||
| 11 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 12 | W10741118 | Gasket, Door (white) (Replaces: W11406593) |
|
$ 332.03 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 16 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 77.70 | ||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 55.68 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 34.34 | |||||
| 19 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 89.09 |
