SELECT A DIAGRAM

Cabinet Parts


Freezer Door Parts


Freezer Liner And Icemaker Parts


Optional Parts


Refrigerator Door Parts


Refrigerator Liner Parts


Shelf Parts


Unit Parts

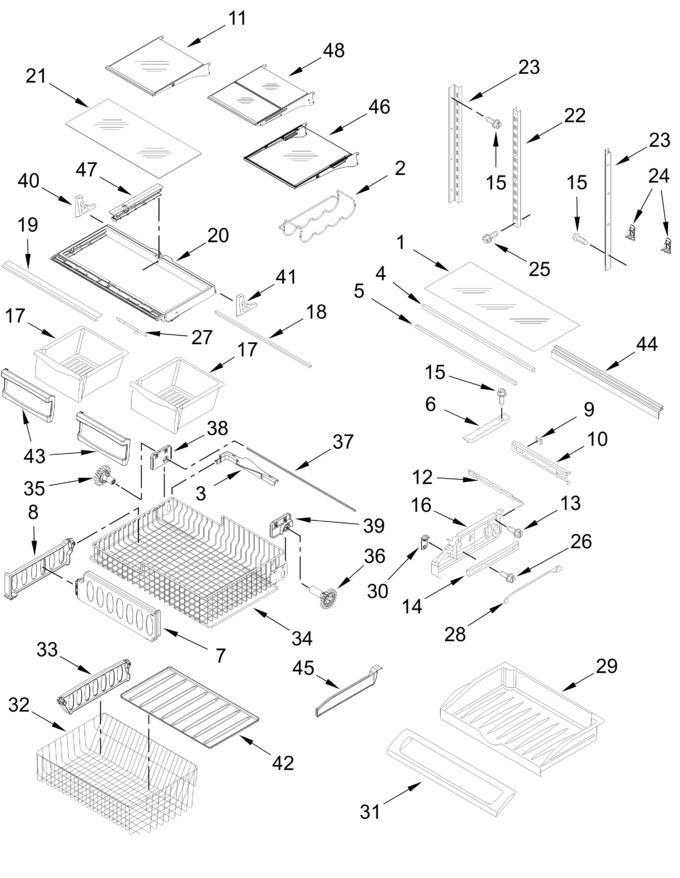

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10165870		Glass, Pantry   (Replaces: 12204820)				$ 229.60
2	W10740489		Rack, Wine				$ 167.67
3	W10149389		Lift, Bail Arm   (Replaces: W10149389N)				$ 92.66
4	W11245261		Trim, Pantry Glass   (Replaces: 13048801)			Immediately	$ 85.61
5	W10783763		Brace, Crisper Frame				$ 93.93
6	WP67001719		Track, Deli Drawer   (Replaces: 12531901)			Immediately	$ 8.99
7	W10311695		Divider, Basket (upper)				$ 30.20
8	W10241046		Divider, Basket (upper)			Immediately	$ 29.19
9	12656902		Gasket, Pantry		Appelez-nous	-
10	W10165876		Housing, Control   (Replaces: 13048301)				$ 80.87
11	W10811323		Shelf Assembly, Fixed   (Replaces: W10739624)			Immediately	$ 261.16
12	W10165882		Slide, Temperature   (Replaces: 13048401)				$ 16.25
13	WP67006415		Screw   (Replaces: 12990512)				$ 8.38
14	WPW10235370		Glide, Pantry   (Replaces: W10235370)			Immediately	$ 199.80
15	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
16	W11222065		Endcap, Pantry (left Hand)   (Replaces: W11186157)			Immediately	$ 53.64
17	WP67002633		Pan, Crisper   (Replaces: 12530505SP)			Immediately	$ 149.12
18	WP12227303WD		Brace, Crisper Cover   (Replaces: 12227303WD)				$ 111.25
19	WPW10231343		Trim, Crisper   (Replaces: W10231343)			Immediately	$ 99.65
20	W10858393		Frame, Crisper   (Replaces: W10671241)			Immediately	$ 143.78
21	WP67006878		Glass, Crisper   (Replaces: 12204822)			Immediately	$ 185.19
22	W10273463		Ladder, Center				$ 29.61
23	W10251969		Ladder, Side				$ 31.44
24	WP67001716		Hook, Ladder   (Replaces: 12531802)			Immediately	$ 11.14
25	W10215666		Screw				$ 9.53
26	WP98165		Screw   (Replaces: 12990504)				$ 8.57
27	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
28	W10165910		Bar, Control   (Replaces: 13048201)				$ 15.47
29	W11513151		Drawer, Pantry   (Replaces: W11427807)			Immediately	$ 139.07
30	W11498983		Knob, Temperature Control   (Replaces: 12655204)				$ 30.64
31	W10827914		Lid, Pantry   (Replaces: 12656823)			Immediately	$ 174.01
32	W11127323		Basket, Freezer (upper)   (Replaces: W11115780)			Immediately	$ 137.42
33	W10847995		Divider, Basket (lower)   (Replaces: W10146440)				$ 92.48
34	W11281084		Basket, Freezer (upper)   (Replaces: W11115252)		Appelez-nous	-
35	WPW10474716		Gear, Spur (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
36	WPW10474715		Gear, Spur (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
37	W11715937		Shaft, Rack   (Replaces: W10802331)				$ 68.69
38	W10348259		Mount, Gear (left Hand)				$ 89.87
39	W10348260		Mount, Gear (right Hand)				$ 89.90
40	WP67001721		Support, Pantry (left Hand)   (Replaces: 12531001)			Immediately	$ 8.70
41	WP67001722		Support, Pantry (right Hand)   (Replaces: 12531002)			Immediately	$ 8.93
42	W10316995		Tray, Lower Basket				$ 190.49
43	WP67005920		Front, Crisper   (Replaces: 12802302SP)			Immediately	$ 78.32
44	W10528936		Support, Glass				$ 36.73
45	WPW10165967		Divider, Pantry Drawer   (Replaces: 13048601SP)			Immediately	$ 50.74
46	W10895843		Shelf Assembly, Wine   (Replaces: W10781753)				$ 277.98
47	WPW10671238		Rail, Center Crisper   (Replaces: W10671238)			Immediately	$ 118.46
48	W10811324		Shelf Assembly, Tuck   (Replaces: W10738156)				$ 298.89
	W11222066		Endcap, Pantry (right Hand)   (Replaces: W11185285)			Immediately	$ 52.77

    View Diagram in Separate Window       Print Part List
