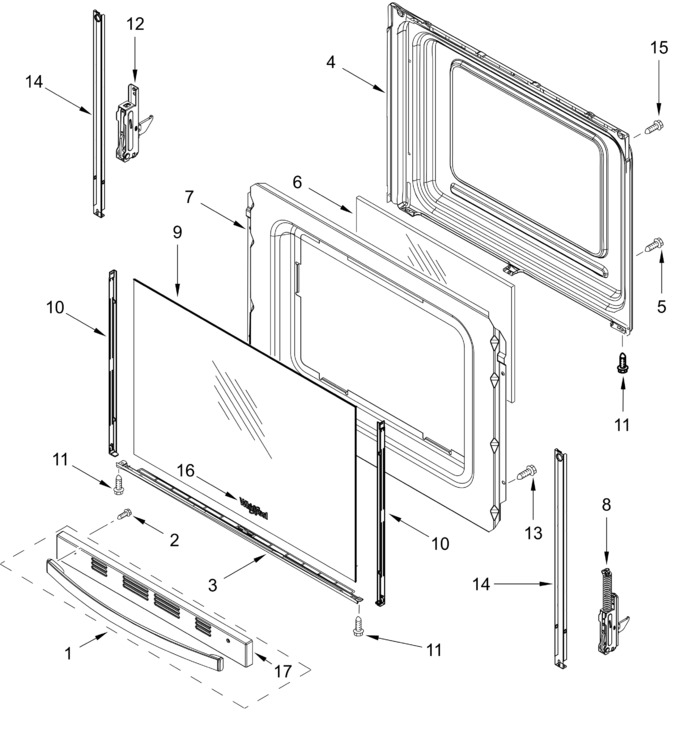

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11707071 | Handle And Vent Assembly (black) (Replaces: W11353052) |
|
$ 172.43 | |||||
| 2 | W10896982 | Screw (Replaces: W10465158) |
|
$ 8.40 | |||||
| 3 | W11569689 | Trim, Bottom Door (black) (Replaces: W11444043) |
|
Immediately | $ 60.08 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W11367326) |
|
$ 171.68 | |||||
| 7 | W11841241 | Retainer, Insulation (Replaces: W11686928) |
|
- | |||||
| 8 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 52.34 | ||||
| 9 | W11781572 | Glass Assembly, Outer Door (black) (Replaces: W11729638) |
|
- | |||||
| 10 | W10761018 | Trim, Door Side (black, Left) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 16 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 17 | W11781569 | Door Trim, Vent (black) (Replaces: W11623352) |
|
$ 165.50 | |||||
| W10761014 | Trim, Door Side (black, Right) (Replaces: W10746435) |
|
Immediately | $ 72.96 |
