SELECT A DIAGRAM

Basket And Tub Parts


Console Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)

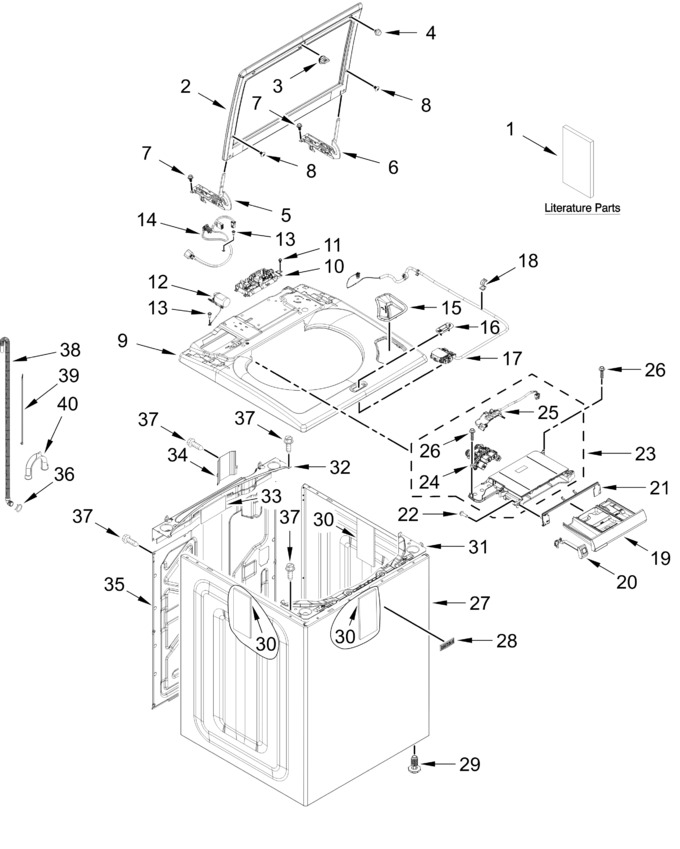

Top And Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W11799225		Assembly, Lid (glass, Grey)   (Replaces: W11710906)				$ 272.42
3	W11799222		Assembly, Strike   (Replaces: W11710925)				$ 24.96
5	W11789527		Hinge, Lid (left)   (Replaces: W11701943)			Immediately	$ 83.72
6	W11789526		Hinge, Lid (right)   (Replaces: W11701944)			Immediately	$ 81.26
9	W11799221		Top (midnight Steel)   (Replaces: W11552286)		Appelez-nous	-
10	W11805172		Machine And Motor Control Unit Assembly   (Replaces: W11678113)				$ 382.02
15	W11799226		Dispenser, Bleach (grey)   (Replaces: W11681462)		Appelez-nous	-
16	W11799224		Bezel, Lid Lock (grey)   (Replaces: W11675658)		Appelez-nous	-
17	W11670519		Latch, Lid Lock Assembly   (Replaces: W11368616)			Immediately	$ 61.08
18	W11789525		Clip, Harness   (Replaces: W11655398)		Appelez-nous	-
19	W11805178		Assembly, Dispenser Drawer (midnight Steel)   (Replaces: W11681425)				$ 53.92
20	W11805175		Assembly ,faucet Switch (grey)   (Replaces: W11730990)		Appelez-nous	-
21	W11805180		Dispenser Bezel Assembly (grey)   (Replaces: W11681446)		Appelez-nous	-
27	W11677459		Cabinet (midnight Steel)		Appelez-nous	-
	W11678315		Energy Guide		Appelez-nous	-
	W11762163		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
