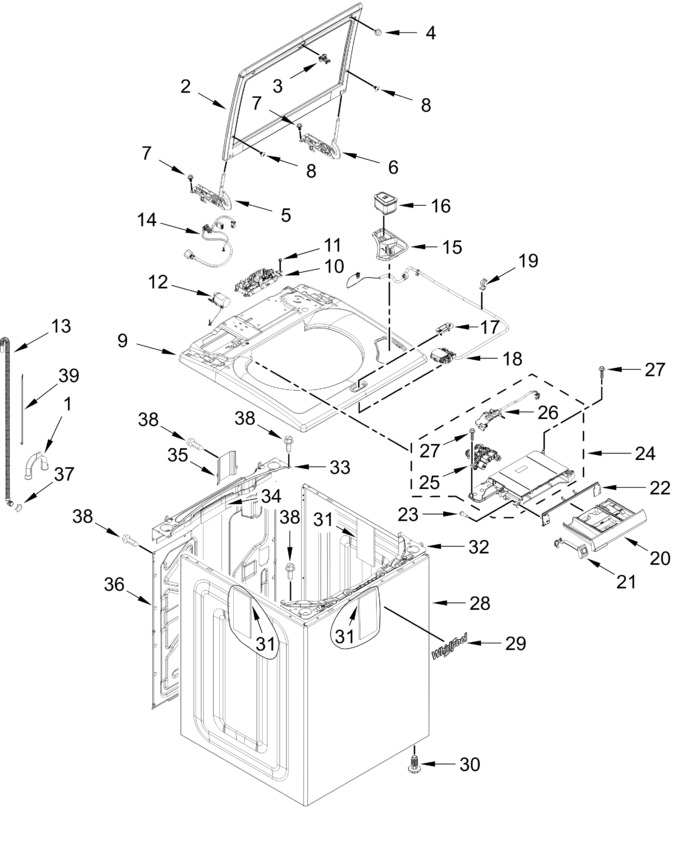

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Basket And Tub Parts
Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 2 | W11413336 | Lid Assembly (glass, Grey) (Replaces: W11113665) |
|
Immediately | $ 396.69 | ||||
| 3 | W11721071 | Assembly, Strike (Replaces: W11533683) |
|
Immediately | $ 8.16 | ||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 23.30 | ||||
| 5 | W11551369 | Hinge, Lid (left) (Replaces: W11128305) |
|
Immediately | $ 114.96 | ||||
| 6 | W11551376 | Hinge, Lid (right) (Replaces: W11128306) |
|
Immediately | $ 121.92 | ||||
| 7 | WP489128 | Screw (Replaces: W10142728) |
|
$ 11.40 | |||||
| 8 | W11679612 | Screw (Replaces: W11183686) |
|
$ 14.99 | |||||
| 9 | W11423770 | Top, (chrome Shadow) (Replaces: W11126902) |
|
Immediately | $ 382.84 | ||||
| 10 | W11771929 | Machine And Motor Control Unit Assembly (Replaces: W11749385) |
|
$ 387.57 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 12 | W11638178 | Line Filter (Replaces: W11296733) |
|
$ 86.72 | |||||
| 13 | W11764699 | Outer Drain Hose (Replaces: W11703202) |
|
$ 40.99 | |||||
| 14 | W11551294 | Power Cord (Replaces: W11112935) |
|
Immediately | $ 41.51 | ||||
| 15 | W11662175 | Bleach Dispenser (grey) (Replaces: W11175768) |
|
$ 30.85 | |||||
| 16 | W11416456 | Brush, Scrub (Replaces: W11175764) |
|
Immediately | $ 15.02 | ||||
| 17 | W11559688 | Lid Lock Bezel (grey) (Replaces: W11215091) |
|
Immediately | $ 30.29 | ||||
| 18 | W11700916 | Lid Lock Assembly (Replaces: W11543566) |
|
Immediately | $ 76.34 | ||||
| 19 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 20 | W11611449 | Dispenser Drawer Assembly (grey) (Replaces: W11239953) |
|
$ 82.25 | |||||
| 21 | W11662334 | Faucet Switch Assembly (grey) (Replaces: W11246872) |
|
$ 64.50 | |||||
| 22 | W11375989 | Dispenser Bezel Assembly (grey) |
|
$ 30.20 | |||||
| 23 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 24 | W11614513 | Dispenser Housing And Inlet Valve Assembly (Replaces: W11570268) |
|
Immediately | $ 199.38 | ||||
| 25 | W11614515 | Valve, Water Inlet (Replaces: W11528768) |
|
Immediately | $ 177.26 | ||||
| 26 | W11524850 | Harness, Valve |
|
$ 69.26 | |||||
| 27 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.80 | ||||
| 28 | W10676681 | Cabinet (chrome Shadow) |
|
$ 487.34 | |||||
| 29 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 30 | W11213957 | Foot Leveling Assembly (Replaces: W11179235) |
|
Immediately | $ 14.24 | ||||
| 31 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 23.38 | ||||
| 32 | W11381327 | Channel, Top Front |
|
Immediately | $ 78.50 | ||||
| 33 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 34 | WP8564458 | Absorber, Impact (small) (Replaces: 8564458) |
|
Immediately | $ 8.38 | ||||
| 35 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 36 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 327.72 | ||||
| 37 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 38 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 39 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 |
