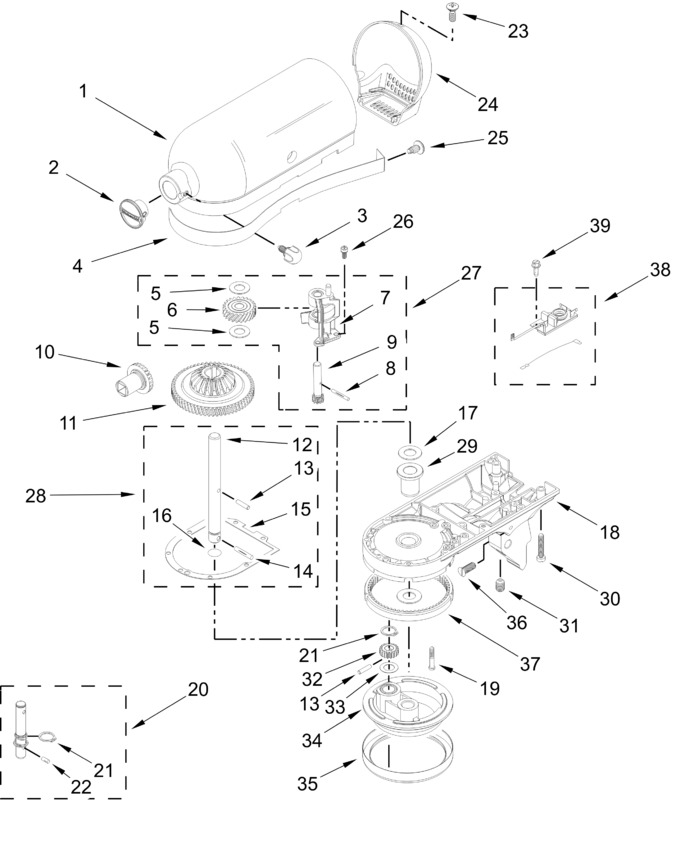

Case, Gearing And Planetary Unit Parts
Color Variation Parts
Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIE5FDD79A2A1EAC9485A25E5426F464E0 | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 2 | W11831059 | Cap, Attachment Hub (Replaces: W10753041) |
|
Immediately | $ 15.12 | ||||
| 3 | W10839419 | Thumb Screw (chrome) (Replaces: W10417014) |
|
$ 8.57 | |||||
| 4 | ARIC6746C5AE47224F8A375A168C3A6706B | Band, Trim (refer To Color Variation Parts Page) |
|
- | |||||
| 5 | WPW10323373 | Washer, Fiber (Replaces: W10323373) |
|
Immediately | $ 4.72 | ||||
| 6 | WPW10112253 | Gear, Worm (Replaces: W11604364) |
|
Immediately | $ 13.47 | ||||
| 7 | W11082541 | Bracket, Worm Gear And Bearing (Replaces: 240308) |
|
$ 14.78 | |||||
| 8 | WP9705444 | Pin, Grooved (Replaces: 9705444) |
|
Immediately | $ 4.84 | ||||
| 9 | 2402102 | Gear, Pinion And Shaft |
|
- | |||||
| 10 | W11192794 | Gear, Attachment Hub (Replaces: W11175140) |
|
Immediately | $ 40.69 | ||||
| 11 | W11192794 | Gear, Center Bevel Pinion (Replaces: W11175138) |
|
Immediately | $ 40.69 | ||||
| 12 | WP240026 | Shaft, Vertical Center (Replaces: 240026) |
|
Immediately | $ 9.14 | ||||
| 13 | 2400181 | Pin, Agitator Shaft |
|
- | |||||
| 14 | W11762673 | Pin, Grooved (Replaces: W11745418) |
|
Immediately | $ 4.25 | ||||
| 15 | W11582479 | Gasket, Transmission (Replaces: 240684) |
|
$ 21.52 | |||||
| 16 | 6750055 | O-ring |
|
- | |||||
| 17 | WPW10323378 | Washer (Replaces: W10323378) |
|
Immediately | $ 10.83 | ||||
| 18 | ARI86444B15DE80EE352D6FFBE2E3511D4A | Lower Gear Case (refer To Color Variation Parts Page) |
|
- | |||||
| 19 | W11170598 | Screw (Replaces: 9708651) |
|
$ 4.54 | |||||
| 20 | WP243368 | Shaft, Agitator (Replaces: 243368) |
|
Immediately | $ 17.29 | ||||
| 21 | WP9703438 | Ring, Retaining (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 22 | W11664709 | Pin, Groove (Replaces: W11533778) |
|
Immediately | $ 6.75 | ||||
| 23 | WP241877 | Screw (Replaces: 241877) |
|
$ 4.15 | |||||
| 24 | ARI30058DB0443D717E270BDD6941375B54 | Cover, End (refer To Color Variation Parts Page) |
|
- | |||||
| 25 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 26 | W11097298 | Screw (Replaces: 3400022) |
|
- | |||||
| 27 | 2403092 | Worm Gear Bracket And Gear Assembly |
|
- | |||||
| 28 | 4160474 | Shaft, Center Agitator Assembly |
|
$ 28.53 | |||||
| 29 | WP16897 | Bearing, Lower Center (Replaces: 16897) |
|
Immediately | $ 5.10 | ||||
| 30 | W11173547 | Screw (Replaces: 9708652) |
|
$ 4.72 | |||||
| 31 | WP3400203 | Screw (Replaces: W11134949) |
|
Immediately | $ 5.04 | ||||
| 32 | W11133645 | Gear, Pinion (Replaces: W10903540) |
|
$ 4.92 | |||||
| 33 | WP9706090 | Washer (Replaces: 9706090) |
|
$ 5.04 | |||||
| 34 | ARIC86C7B55F448FD7A50FE7259554FF2DA | Planetary (refer To Color Variation Parts Page) |
|
- | |||||
| 35 | 2402852 | Ring, Planetary Drip (polished) |
|
- | |||||
| 36 | W11028216 | Screw (Replaces: 89411) |
|
$ 5.22 | |||||
| 37 | W11340106 | Gear, Internal (Replaces: W11044504) |
|
$ 18.56 | |||||
| 38 | 4176340 | Filter, Rfi (includes Lead Filter) (Replaces: 9705132) |
|
- | |||||
| 39 | 7101P11560 | Screw |
|
- |
