SELECT A DIAGRAM

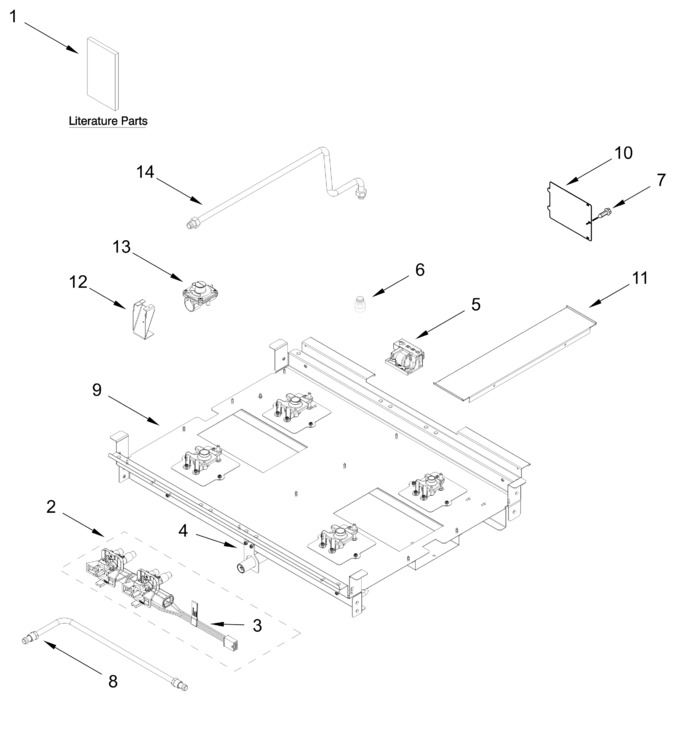

Burner Box Parts
Chassis Parts
Cooktop, Burner And Grate Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
Venting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11785686 | Valve Manifold Assembly (Replaces: W11651408) |
|
- | |||||
| 3 | W11785278 | Switch, Harness (Replaces: W11596339) |
|
- | |||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 79.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | 4453116 | Adapter, Male |
|
$ 179.43 | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11335267 | Tube, Manifold Supply (Replaces: W10892073) |
|
- | |||||
| 9 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 10 | W10115843 | Cover, Ignition |
|
- | |||||
| 11 | W11121361 | Filler, Cooktop (black) |
|
$ 465.65 | |||||
| 12 | W11320155 | Bracket, Pressure Regulator (Replaces: W11096823) |
|
- | |||||
| 13 | W11106948 | Regulator, Pressure (Replaces: W10449140) |
|
Immediately | $ 250.84 | ||||
| 14 | W11320154 | Tube, Pressure Regulator (Replaces: W11106963) |
|
$ 185.91 | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11200328 | Harness, Cooktop |
|
$ 199.91 | ||||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | ||||||
| WP9759877 | Retainer, Strain Relief (Replaces: 9759877) |
|
$ 20.21 | ||||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11200317 | Harness, Main (30") |
|
$ 239.51 | ||||||
| W11785685 | Valve Manifold Assembly (Replaces: W11651409) |
|
$ 534.74 | ||||||
| W11335268 | Tube, Manifold Supply (Replaces: W10892076) |
|
- | ||||||
| W11565461 | Wiring Diagram (oven) |
|
- | ||||||
| W11508930 | Wiring Diagram (cooktop) |
|
- | ||||||
| W11508899 | Use And Care Guide |
|
- | ||||||
| ARI5A21FEE31EB202DDA189D0EC8CA36187 | (left Front, Left Rear) |
|
- | ||||||
| W11508890 | Install Instructions |
|
- | ||||||
| W11428599 | Kit, Lp Conversion (Replaces: W11422176) |
|
$ 47.84 | ||||||
| W11202265 | Sheet, Tech |
|
- | ||||||
| W11184746 | Guide, Internet Connectivity |
|
- | ||||||
| ARI5AD74B3C8D449725567FBC40A122921E | (right Front, Right Rear) |
|
- | ||||||
| ARI97EE49875860764C24B1F1C761487B6B | (right) |
|
- | ||||||
| W11200325 | Harness, Communication |
|
$ 116.19 | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 113.72 | ||||||
| W11321066 | Cord, Power (Replaces: W11212216) |
|
$ 118.94 | ||||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 |
