Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

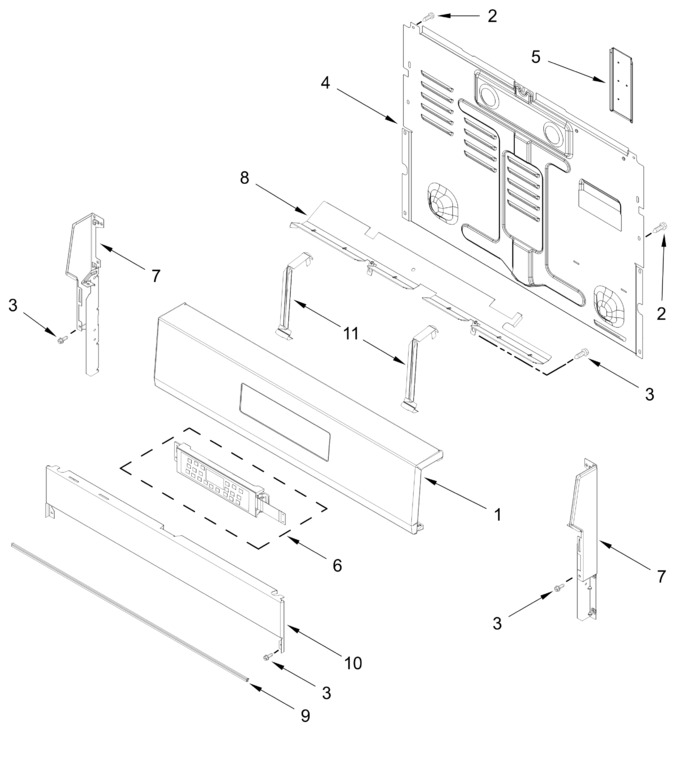

| 1 | W11781577 | Console (white) (Replaces: W11624750) |
|
- | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 4 | W11729935 | Cover, Upper Rear (Replaces: W11392241) |
|
Immediately | $ 132.02 | ||||
| 5 | W11747327 | Cover, Rear Flue (Replaces: W11736681) |
|
- | |||||
| 6 | W11781583 | Assembly, User Interface (Replaces: W11739941) |
|
$ 482.28 | |||||
| 7 | W11730528 | Endcap (white, Left) (Replaces: W11327042) |
|
$ 116.03 | |||||
| 8 | W11747326 | Shield, Heat (Replaces: W11736649) |
|
- | |||||
| 9 | W11728258 | Gasket, Lower Panel (Replaces: W11643797) |
|
$ 58.00 | |||||
| 10 | W11726812 | Panel, Lower (white) (Replaces: W11625412) |
|
$ 122.82 | |||||
| 11 | W11713812 | Bracket, Control (Replaces: W11290750) |
|
$ 30.37 | |||||
| W11730533 | Endcap (white, Right) (Replaces: W11327044) |
|
$ 116.03 |
