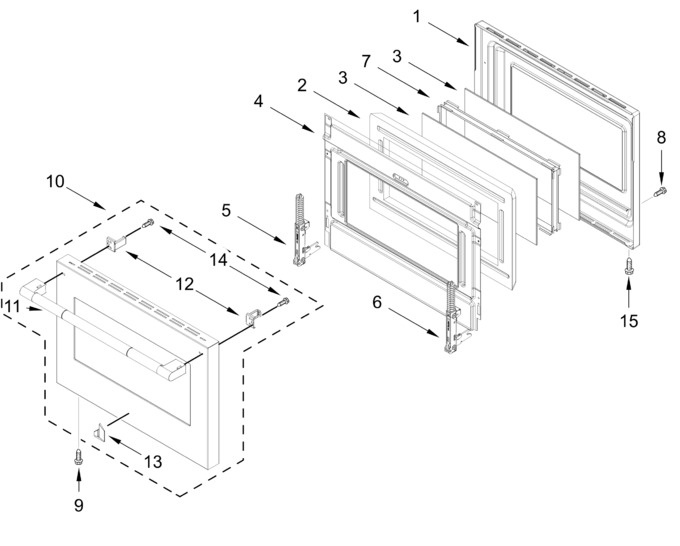

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11334152		Liner, Door   (Replaces: W11036772)				$ 417.57
2	W11688331		Insulation, Door   (Replaces: W10884823)				$ 46.39
3	W11334153		Glass, Inner   (Replaces: W11036791)				$ 125.70
4	W11194820		Retainer, Glass				$ 190.50
5	W11568941		Hinge, Door (left)   (Replaces: W11096978)			Immediately	$ 115.01
6	W11568813		Hinge, Door (right)   (Replaces: W11096977)			Immediately	$ 84.80
7	W11194814		Frame, Glass			Immediately	$ 349.83
8	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 14.77
9	W10162096		Screw				$ 21.90
10	W11315585		Outer Door Glass Assembly (includes Handle)   (Replaces: W10799310)				$ 1,287.37
11	W11334156		Handle, Door   (Replaces: W11102828)		Appelez-nous	-
12	W11317513		Bracket, Handle   (Replaces: W11197830)				$ 78.81
13	W11317500		Badge   (Replaces: W11238656)				$ 111.47
14	WPW10276043		Screw   (Replaces: W10276043)				$ 7.30
15	W11193480		Screw   (Replaces: W10607120)				$ 14.72
