SELECT A DIAGRAM
New Model Search:

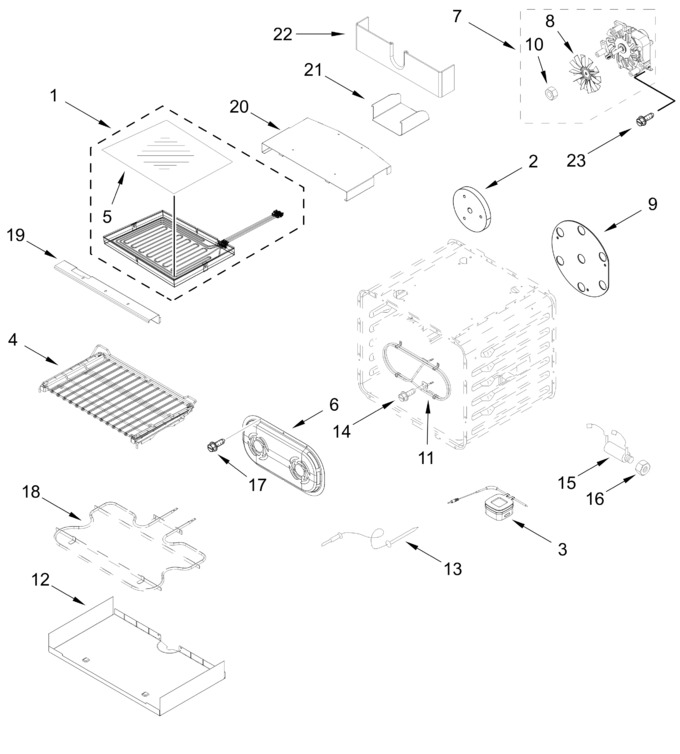

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11210530 | Element, Broil |
|
$ 542.44 | |||||
| 2 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 27.10 | ||||
| 3 | W11318341 | Probe, Wireless Meat (Replaces: W11186918) |
|
$ 204.08 | |||||
| 4 | W11545292 | Rack, Sliding Oven (Replaces: W11491350) |
|
$ 467.32 | |||||
| 5 | W11193191 | Glass, Broil Element |
|
- | |||||
| 6 | W11232487 | Baffle, Convection |
|
$ 242.79 | |||||
| 7 | W11685616 | Needs Description (Replaces: W11121400) |
|
Immediately | $ 269.61 | ||||
| 8 | W11320150 | Blade, Fan (Replaces: W11108376) |
|
$ 342.64 | |||||
| 9 | W10261523 | Plate, Fan |
|
$ 77.85 | |||||
| 10 | W10794042 | Nut, Acorn (left Hand Thread) (Replaces: W10631504) |
|
$ 13.14 | |||||
| 11 | W10116434 | Element, Convection |
|
$ 342.58 | |||||
| 12 | W11106922 | Tray, Hidden Bake |
|
$ 172.11 | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 14 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 108.02 | ||||
| 16 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 17 | W10739592 | Screw |
|
- | |||||
| 18 | ARIF93179EB3F6CD1D1805E65CA61F82AAB | Element, Hidden Bake (not Serviced) |
|
- | |||||
| 19 | W11112336 | Bracket, Broil Front |
|
- | |||||
| 20 | W11158843 | Bracket, Broil Top |
|
- | |||||
| 21 | W11111392 | Cover, Broil Terminal |
|
- | |||||
| 22 | W11170823 | Cover Plate, Terminal Hole |
|
- | |||||
| 23 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.77 |
