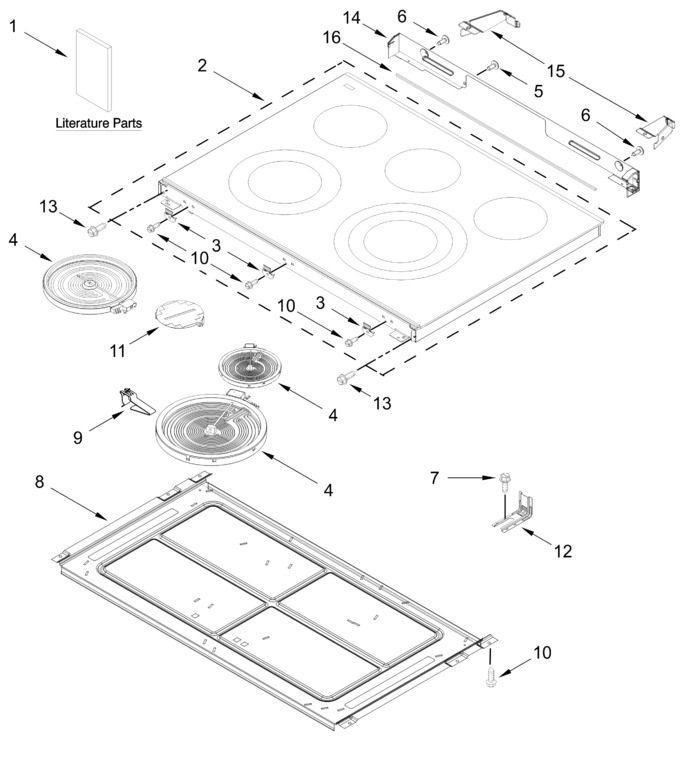

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11789768 | Cooktop (black, Includes Cooktop Bracket) (Replaces: W11678993) |
|
- | |||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | W10823720 | Element (3000w) (Replaces: W10187839) |
|
Immediately | $ 336.57 | ||||
| 5 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 6 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | W11729951 | Pan, Radiant Element (Replaces: W11300812) |
|
$ 223.66 | |||||
| 9 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 12 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 14 | W11781595 | Bracket, Rear Cooktop (Replaces: W11687510) |
|
$ 165.50 | |||||
| 15 | W11747357 | Corner, Brace (left) (Replaces: W11673746) |
|
$ 26.54 | |||||
| 16 | W11784047 | Gasket Cooktop, Console (Replaces: W11751866) |
|
$ 46.12 | |||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| W11720123 | Tech Sheet |
|
- | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| W11781596 | Harness, Main (Replaces: W11671789) |
|
$ 234.14 | ||||||
| W11747358 | Corner, Brace (right) (Replaces: W11673745) |
|
$ 26.54 | ||||||
| W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 61.80 | ||||||
| W11747427 | Harness, Cooktop (Replaces: W11341269) |
|
Immediately | $ 215.57 | |||||
| W11747426 | Harness, Dc (Replaces: W11349007) |
|
$ 167.53 | ||||||
| W11702305 | Owner's Manual |
|
- | ||||||
| W11702311 | Quick Start Guide |
|
- | ||||||
| W11747425 | Harness, Console (Replaces: W11341203) |
|
Immediately | $ 223.44 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11517959 | Element, Dual (3000w) (Replaces: W11282542) |
|
Immediately | $ 134.44 | |||||
| W11171119 | Element (1200w) (Replaces: 8273994) |
|
Immediately | $ 182.23 | |||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- |
