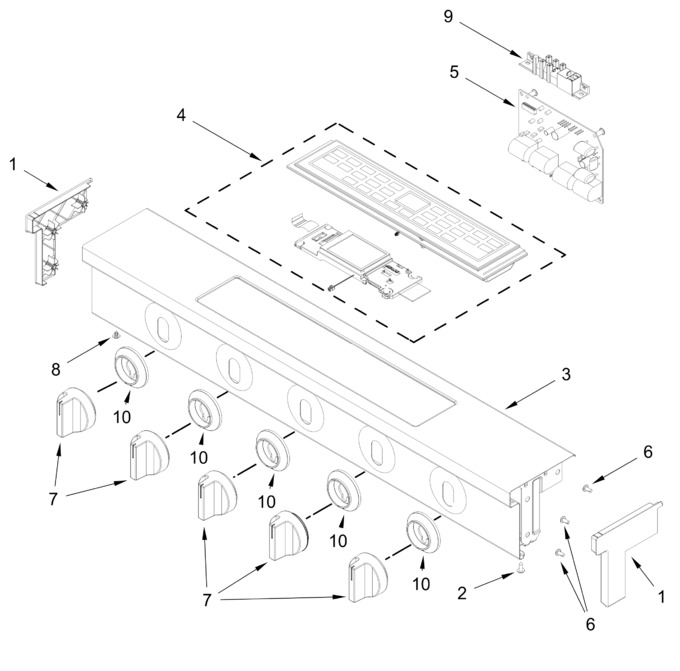

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11747781 | Endcap (white, Left) (Replaces: W11420181) |
|
$ 67.37 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | W11784076 | Panel, Control (white) (Replaces: W11698961) |
|
- | |||||
| 4 | W11812071 | Control, User Interface (Replaces: W11688270) |
|
$ 465.97 | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 6 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 7 | W11728631 | Knob (white) (Replaces: W11632047) |
|
- | |||||
| 8 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 10 | W11728635 | Bezel (white) (Replaces: W11632251) |
|
- | |||||
| W11747782 | Endcap (white, Right) (Replaces: W11420179) |
|
$ 67.37 |
