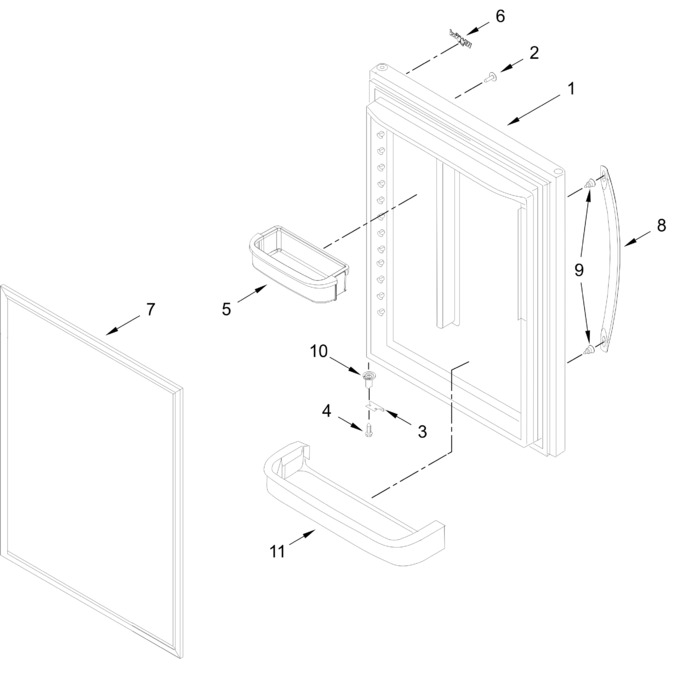

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11190022 | Door, Refrigerator (black Stainless) (Replaces: W11115201) |
|
$ 922.76 | |||||
| 2 | WP12246608 | Plug, Button (black) (Replaces: 12246608) |
|
Immediately | $ 8.15 | ||||
| 3 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 4 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 7 | W10443314 | Gasket, Door (grey) |
|
Immediately | $ 349.07 | ||||
| 8 | W11045128 | Handle Assembly (black Stainless) (Replaces: W10918272) |
|
Immediately | $ 190.44 | ||||
| 9 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 17.06 | ||||
| 10 | WP67003639 | Closer, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 11 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 |
