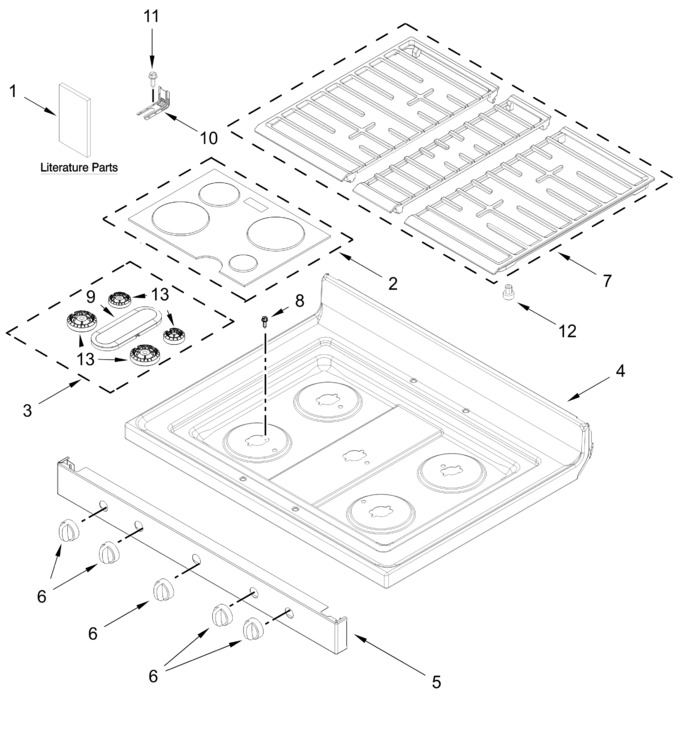

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11605759 | Burner Cap Kit (black) (Replaces: W11498499) |
|
Immediately | $ 75.35 | ||||
| 3 | W11575584 | Burner Kit (Replaces: W11368533) |
|
$ 185.10 | |||||
| 4 | W11478143 | Cooktop (white) (Replaces: W11418084) |
|
$ 422.23 | |||||
| 5 | W11089577 | Panel, Manifold (white) |
|
$ 227.04 | |||||
| 6 | W11620575 | Knob (white) (Replaces: W11510458) |
|
$ 45.03 | |||||
| 7 | W11795499 | Grate Kit - 3pc (Replaces: W11690010) |
|
- | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 9 | W11435660 | Spreader, Flame (Replaces: W11367086) |
|
Immediately | $ 98.56 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 12 | W10919249 | Bumper, Grate (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 13 | W11435630 | Spreader, Flame (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11779180 | Owner's Manual |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11435657 | Spreader, Flame (Replaces: W11352021) |
|
$ 84.43 | ||||||
| W11435659 | Spreader, Flame (Replaces: W11352020) |
|
$ 84.85 | ||||||
| W11779182 | Quick Start Guide |
|
- | ||||||
| W11778915 | Tech Sheet |
|
- | ||||||
| W11795497 | Harness, Main (Replaces: W11773962) |
|
- | ||||||
| W11707251 | Harness, Bake And Broil (Replaces: W11448086) |
|
$ 79.95 | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| 3196896 | Clip, Wire |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- |
