Control Panel And Inner Door Parts

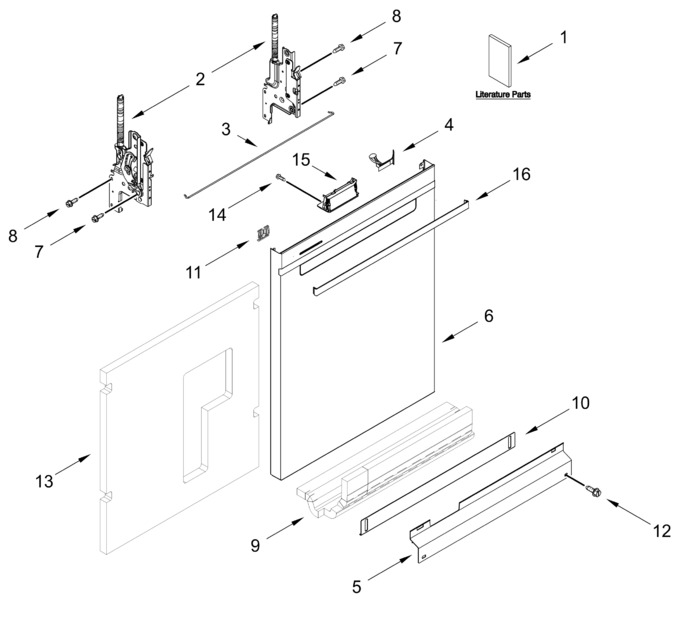

Door And Panel Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Third Level Rack And Track Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11766666		Arm, Hinge (left)   (Replaces: W11721083)			Immediately	$ 59.16
3	W11377160		Cross Brace, Door				$ 33.36
4	W11102920		Light Pipe				$ 68.17
5	W11110746		Access Panel (white)				$ 129.96
6	W11462449		Front Panel (biscuit, Includes Barrel Nut, Handle Trim, Light Pipe And Pocket Handle)   (Replaces: W11393492)		Appelez-nous	-
7	W11676450		Screw   (Replaces: 3400000)				$ 14.76
8	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 76.86
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11467726		Toe Panel (white)				$ 35.77
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	W11632695		Screw (white)   (Replaces: W11438977)			Immediately	$ 14.73
13	W11778318		Insulation, Front Panel   (Replaces: W10919861)				$ 23.86
14	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
15	W10896301		Pocket Handle (white)		Appelez-nous	-
16	W11087930		Trim, Handle   (Replaces: W10865090)				$ 134.16
	W11756687		Tech Sheet		Appelez-nous	-
	W11766665		Arm, Hinge (right)   (Replaces: W11721082)			Immediately	$ 59.16
	W11650524		Energy Guide		Appelez-nous	-
	W11323304		Owners Manual		Appelez-nous	-
