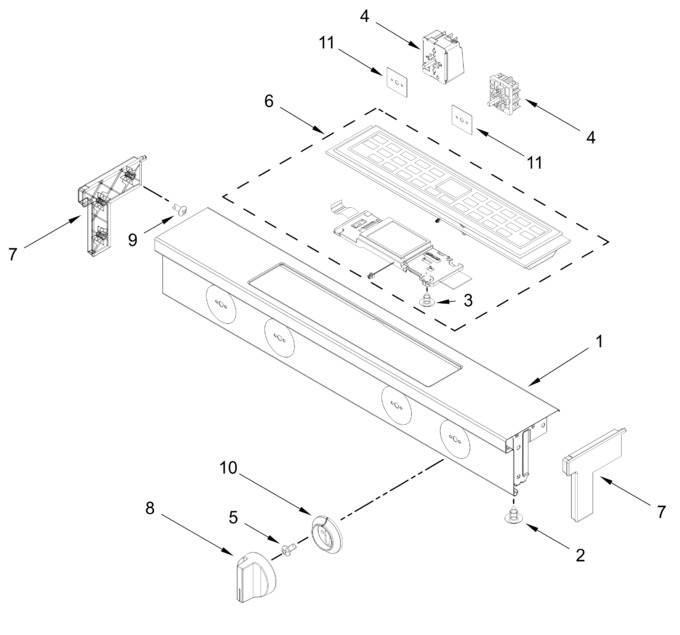

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11776723 | Console (stainless) (Replaces: W11695206) |
|
- | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 4 | W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 6 | W11812077 | User Interface (Replaces: W11700745) |
|
- | |||||
| 7 | W11776746 | Console, Endcap (grey, Left) (Replaces: W11742723) |
|
Immediately | $ 128.46 | ||||
| 8 | W11776749 | Knob (stainless, Single) (Replaces: W11730753) |
|
$ 52.49 | |||||
| 9 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 10 | W11730073 | Bezel (stainless) (Replaces: W11635850) |
|
Immediately | $ 63.40 | ||||
| 11 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 104.64 | |||||
| W11776750 | Knob (stainless, Dual) (Replaces: W11730754) |
|
$ 52.49 | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| W11776748 | Console,endcap (grey, Right) (Replaces: W11742725) |
|
Immediately | $ 128.46 | |||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- |
