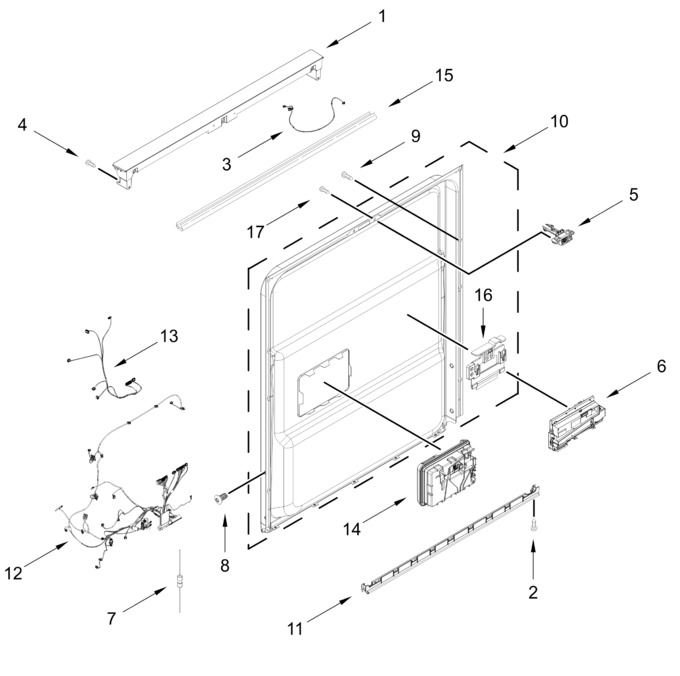

Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Third Level Rack And Track Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11632693		Cap, Console (black)   (Replaces: W11591421)				$ 98.14
2	W11627527		Screw   (Replaces: W11258418)			Immediately	$ 14.72
3	W11747582		Jumper, Ui   (Replaces: W11387866)			Immediately	$ 16.77
4	WPW10213953		Screw   (Replaces: W10711884)			Immediately	$ 7.55
5	W11412299		Latch Assembly (includes Switch)   (Replaces: W11091934)			Immediately	$ 29.70
6	W11791511		Control, Electronic   (Replaces: W11734968)			Immediately	$ 298.65
7	W11397505		Fuse, In-line				$ 115.82
8	W11755068		Screw   (Replaces: W11714324)		Appelez-nous	-
9	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
10	W11779933		Inner Door Assembly   (Replaces: W11773240)			Immediately	$ 356.54
11	W11664713		Seal, Door Bottom   (Replaces: W11563231)			Immediately	$ 59.49
12	W11766664		Wiring Harness, Main (includes Thermostat And Fuse)   (Replaces: W11701597)				$ 208.79
13	W11772441		Wiring Harness, Inner Door   (Replaces: W11695670)				$ 13.88
14	W11412300		Dispenser Assembly   (Replaces: W11092649)			Immediately	$ 172.65
15	W11213719		Seal, Console/door   (Replaces: W11050927)			Immediately	$ 172.77
16	W11088985		Hanger, Control				$ 34.23
17	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.55
