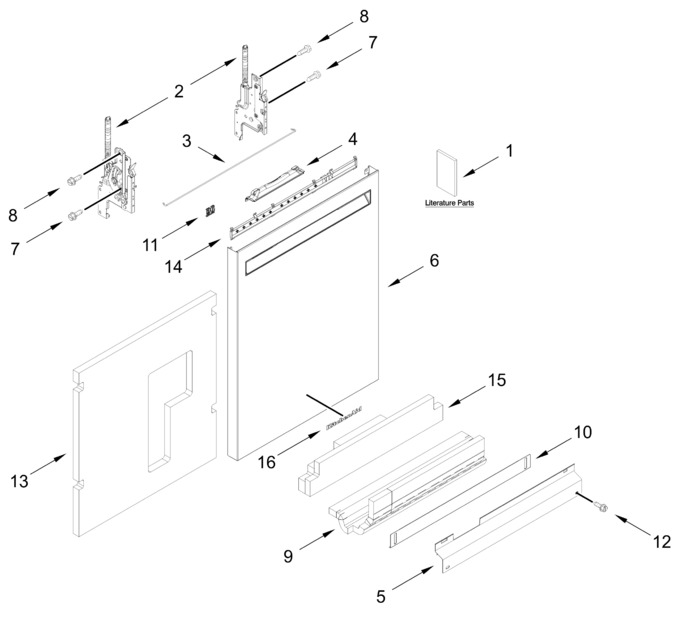

Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Third Level Rack And Track Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11766666		Arm, Hinge (left)   (Replaces: W11721083)			Immediately	$ 59.16
3	W11377160		Cross Brace, Door				$ 33.36
4	W11787309		Handle, Pocket (black)   (Replaces: W11716242)		Appelez-nous	-
5	W11545318		Access Panel (black)   (Replaces: W11108979)			Immediately	$ 27.90
6	W11791536		Front Panel (juniper, Includes Badge, Barrel Nut And Handle)   (Replaces: W11714479)		Appelez-nous	-
7	W11676450		Screw   (Replaces: 3400000)				$ 14.76
8	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 76.86
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11579528		Toe Panel (black)   (Replaces: W11467733)			Immediately	$ 32.90
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	W11551775		Screw (black)   (Replaces: W11438978)			Immediately	$ 15.43
13	W11778318		Insulation, Front Panel   (Replaces: W10919859)				$ 23.86
14	W11779935		Cover, Console   (Replaces: W11705283)				$ 55.87
15	W11573700		Insulation, Multi-layer   (Replaces: W10919858)			Immediately	$ 44.89
16	W11783340		Badge   (Replaces: W11749368)				$ 31.10
	W11767169		Owners Manual		Appelez-nous	-
	W11750683		Energy Guide		Appelez-nous	-
	W11766665		Arm, Hinge (right)   (Replaces: W11721082)			Immediately	$ 59.16
	W11366142		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
