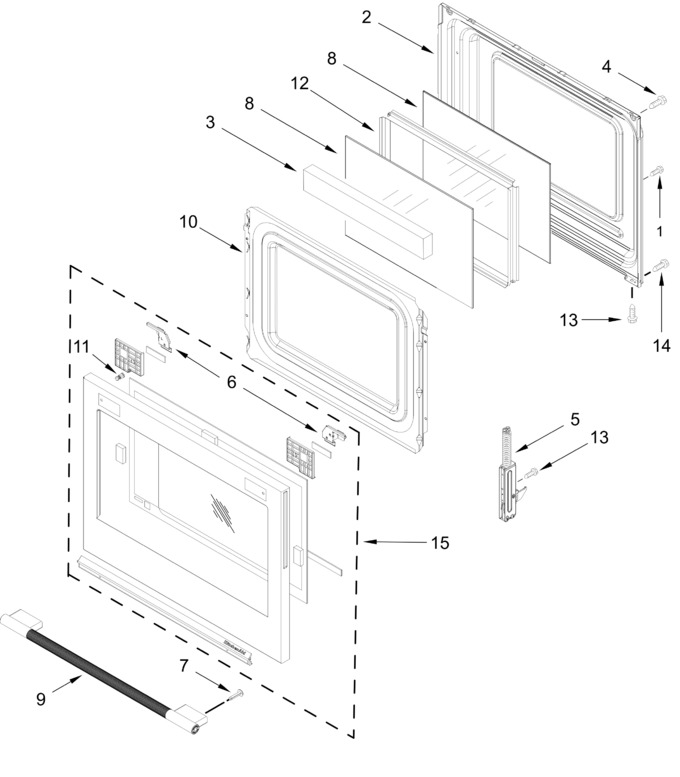

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | W11771199 | Door, Liner (Replaces: W11648799) |
|
Immediately | $ 319.80 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 4 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 5 | W11771200 | Door, Hinge (active) (Replaces: W11659659) |
|
Immediately | $ 82.39 | ||||
| 6 | W11726809 | Bracket, Handle Mount (left) (Replaces: W11417442) |
|
$ 29.69 | |||||
| 7 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 8 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 9 | W11783624 | Handle (black Ore) (Replaces: W11680263) |
|
- | |||||
| 10 | W11539580 | Retainer, Insulation (Replaces: W11380222) |
|
$ 233.31 | |||||
| 11 | W11773159 | Stud (Replaces: W11687274) |
|
$ 29.86 | |||||
| 12 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 13 | W11771219 | Screw (Replaces: W11706901) |
|
- | |||||
| 14 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 15 | W11795881 | Door Assembly (black Ore) (Replaces: W11756889) |
|
$ 1,578.38 | |||||
| W11726808 | Bracket, Handle Mount (right) (Replaces: W11157607) |
|
- |
