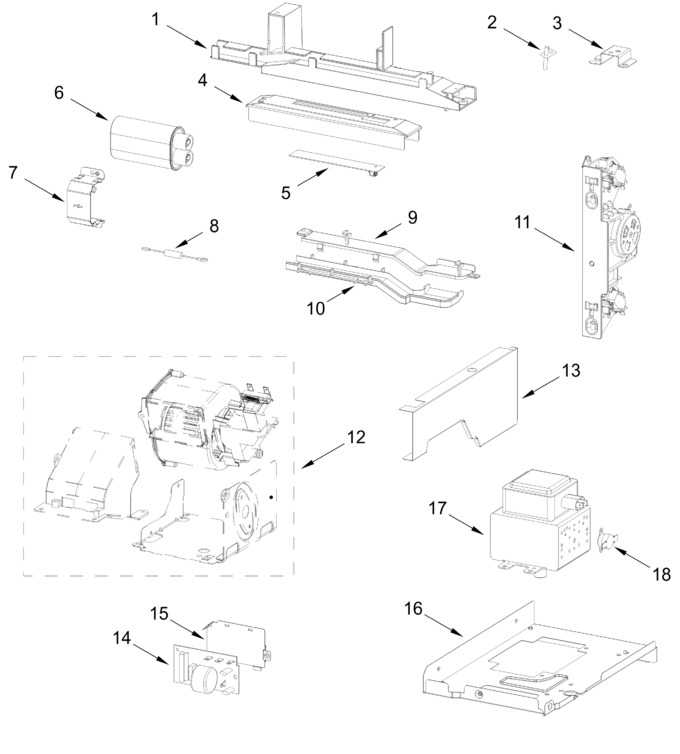

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11785053		Support, Cavity Lamp   (Replaces: W11727300)		Appelez-nous	-
2	W10557537		Sensor, Convection				$ 82.92
3	W11785055		Clip, Ntc   (Replaces: W11736846)		Appelez-nous	-
4	W11779000		Reflector, Led   (Replaces: W11586576)		Appelez-nous	-
5	W11662697		Light Strip, Led   (Replaces: W11573514)				$ 44.42
6	W11846984		Capacitor, High Voltage   (Replaces: W10345331)				$ 50.02
7	W11095808		Bracket, Capacitor		Appelez-nous	-
8	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 34.86
9	W11785048		Air Duct, Cavity Lamp (upper)   (Replaces: W11727301)		Appelez-nous	-
10	W11785047		Air Duct, Cavity Lamp (lower)   (Replaces: W11727302)		Appelez-nous	-
11	W11662685		Assembly, Interlock   (Replaces: W11590601)				$ 83.59
12	W11779006		Fan, Cooling   (Replaces: W11745702)		Appelez-nous	-
13	W11785050		Deflector, Air   (Replaces: W11727299)		Appelez-nous	-
14	WPW10531156		Board, Filter   (Replaces: W10531156)			Immediately	$ 56.88
15	W10313274		Bracket, Noise Filter				$ 32.32
16	W11778995		Plate, Magnetron Support   (Replaces: W11712262)		Appelez-nous	-
17	W11778996		Magnetron   (Replaces: W11770726)			Immediately	$ 115.92
18	W11707308		Thermostat, Magnetron   (Replaces: W11664266)			Immediately	$ 39.77
