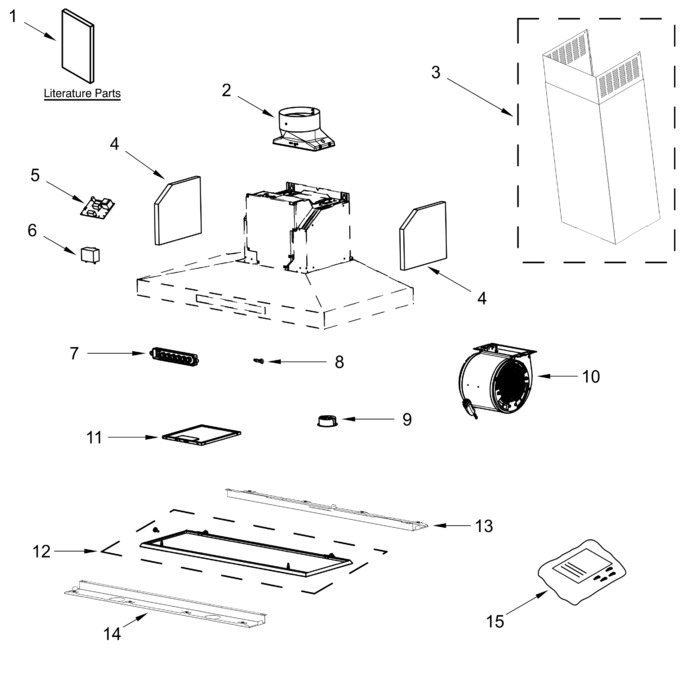

Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W10847841		Damper, Hood   (Replaces: W10592040)				$ 147.46
3	W11794252		Chimney, Upper And Lower (juniper)   (Replaces: W11794136)		Appelez-nous	-
4	W10717244		Insulation, Side				$ 90.36
5	W11613025		Board, Power   (Replaces: W11612969)				$ 332.58
6	W11715950		Capacitor (25 Mf)   (Replaces: W11245979)			Immediately	$ 91.53
7	W11794238		Control, Electronic   (Replaces: W11794123)		Appelez-nous	-
8	W11737108		Sensor, Speed   (Replaces: W10716822)				$ 203.18
9	W11794237		Light, Led   (Replaces: W11794122)			Immediately	$ 76.20
10	W11794241		Blower, Fan   (Replaces: W11794128)		Appelez-nous	-
11	W10169961A		Filter, Grease   (Replaces: W11245983)			Immediately	$ 39.53
12	W11794255		Panel, Perimetric (juniper, 36 Inch)   (Replaces: W11794140)		Appelez-nous	-
13	W11795662		Panel, Rear (juniper, 36 Inch)   (Replaces: W11795570)		Appelez-nous	-
14	W11795678		Panel, Front Light (juniper, 36 Inch)   (Replaces: W11795571)		Appelez-nous	-
15	W11794240		Hardware, Installation   (Replaces: W11794127)		Appelez-nous	-
	W11788445		Owner's Manual		Appelez-nous	-
