SELECT A DIAGRAM
Chassis Parts

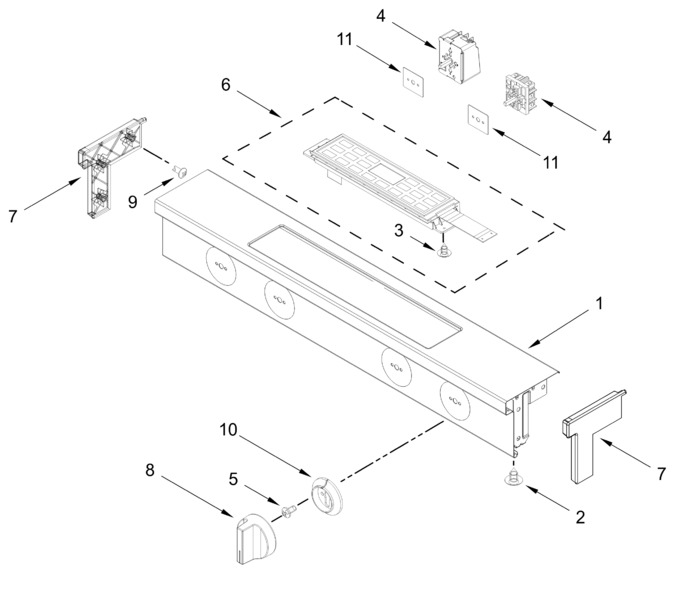

Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11784048 | Console (stainless) (Replaces: W11698938) |
|
$ 409.15 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 4 | W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 6 | W11812067 | User Interface (Replaces: W11688265) |
|
Immediately | $ 465.97 | ||||
| 7 | W11776746 | Console, Endcap (grey, Left) (Replaces: W11742723) |
|
Immediately | $ 128.46 | ||||
| 8 | W11730076 | Knob (stainless, Single) (Replaces: W11635836) |
|
Immediately | $ 101.49 | ||||
| 9 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 10 | W11730073 | Bezel (stainless) (Replaces: W11635850) |
|
Immediately | $ 63.40 | ||||
| 11 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 104.64 | |||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11776748 | Console,endcap (grey, Right) (Replaces: W11742725) |
|
Immediately | $ 128.46 | |||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARI1CEA8328406821DB8179A8C971BDB5B4 | (left Rear, Right Rear) |
|
- | ||||||
| W11747362 | Knob (stainless, Triple) (Replaces: W11635839) |
|
$ 63.20 | ||||||
| W11730074 | Knob (stainless, Dual) (Replaces: W11635837) |
|
$ 68.40 | ||||||
| W11129442 | Switch, Infinite (Replaces: W10437097) |
|
Immediately | $ 100.57 |
