SELECT A DIAGRAM
Burner Box Parts

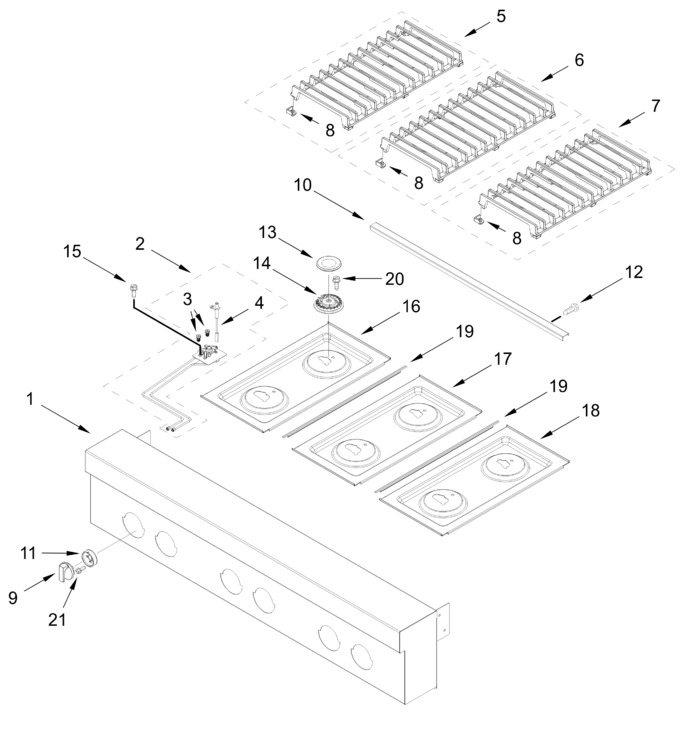

Cooktop And Burner Parts
Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11634747 | Panel, Console (Replaces: W11222270) |
|
$ 763.95 | |||||
| 2 | W11337062 | Orifice Holder Assembly (Replaces: W10892771) |
|
Immediately | $ 128.25 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11580024 | Igniter (Replaces: W11238758) |
|
Immediately | $ 23.66 | ||||
| 5 | W11516449 | Grate Assembly (black) (Replaces: W11291180) |
|
$ 265.06 | |||||
| 6 | W11516481 | Grate Assembly (black) (Replaces: W11291184) |
|
$ 260.06 | |||||
| 7 | W11516462 | Grate Assembly (black) (Replaces: W11291182) |
|
$ 265.07 | |||||
| 8 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 9 | W11791681 | Knob, Dual (stainless) (Replaces: W11560135) |
|
- | |||||
| 10 | W11355760 | Trim, Island |
|
$ 246.15 | |||||
| 11 | W11317889 | Bezel (stainless) (Replaces: W11090284) |
|
$ 106.87 | |||||
| 12 | 7101P33860 | Screw |
|
- | |||||
| 13 | W11319224 | Cap, Burner (black, Set Of 6) (Replaces: W11121392) |
|
Immediately | $ 252.20 | ||||
| 14 | W11319683 | Spreader, Flame (high) (Replaces: W10891987) |
|
Immediately | $ 250.69 | ||||
| 15 | 7101P42660 | Screw |
|
- | |||||
| 16 | W11316700 | Panel, Left Cooktop (Replaces: W11038237) |
|
$ 502.01 | |||||
| 17 | W11316701 | Panel, Center Cooktop (Replaces: W11038241) |
|
$ 502.01 | |||||
| 18 | W11328008 | Panel, Right Cooktop (Replaces: W11038254) |
|
$ 475.25 | |||||
| 19 | W10271524 | Trim, T-strip (black) |
|
$ 212.34 | |||||
| 20 | W11766499 | Screw (Replaces: W11323260) |
|
Immediately | $ 12.72 | ||||
| 21 | W11509770 | Screw (Replaces: W11328357) |
|
$ 14.23 | |||||
| W11337065 | Orifice Holder Assembly (Replaces: W10892772) |
|
$ 128.73 | ||||||
| ARI05F9F4A2BD622DBC2D297EF0D6515A25 | (all But Center Rear) |
|
- | ||||||
| W11238756 | Igniter |
|
Immediately | $ 67.96 | |||||
| W11337063 | Orifice Holder Assembly (Replaces: W10892486) |
|
Immediately | $ 128.27 | |||||
| W10892429 | Orifice, Simmer (2.0k) |
|
$ 99.86 | ||||||
| W10892440 | Orifice, Main (7.2k) |
|
$ 99.86 | ||||||
| W11661909 | Orifice, Simmer (2.6k) (Replaces: W10892435) |
|
Immediately | $ 74.14 | |||||
| ARI1CEAAC8290BEF7A8702FF0CAA10D9AD0 | (left Front, Center Front, Right Front) |
|
- | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| ARI97EE49875860764C24B1F1C761487B6B | (right) |
|
- | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARIAF8B2CF0387D82C1B76CFE2500CD62C6 | (left Rear, Right Rear) |
|
- | ||||||
| W11319673 | Spreader, Flame (low) (Replaces: W10892022) |
|
Immediately | $ 229.46 |
