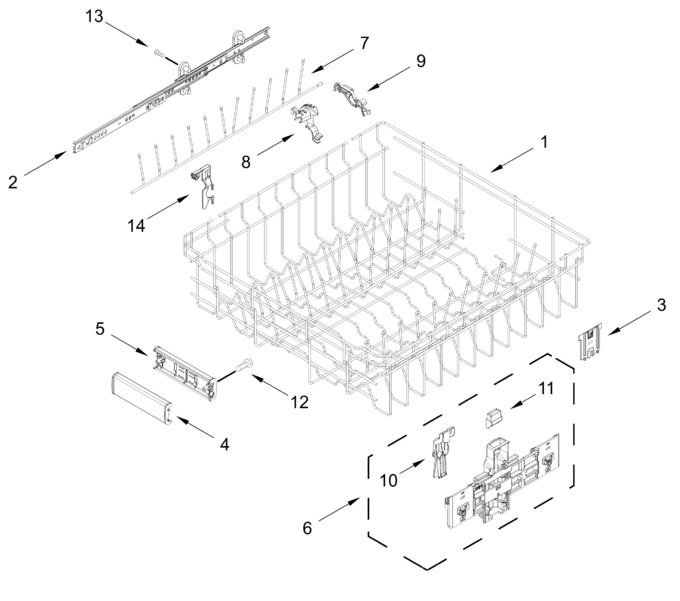

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10847873		Dishrack, Upper				$ 191.97
2	W11778689		Track, Assembly (left)   (Replaces: W11212732)				$ 85.81
3	W11580020		Clip, Adjuster Arm   (Replaces: W11180605)			Immediately	$ 62.65
4	W11505218		Handle, Dishrack   (Replaces: W11268684)		Appelez-nous	-
5	W11505221		Handle, Dishrack Rear   (Replaces: W11373129)		Appelez-nous	-
6	W11685751		Rack Adjuster (left)   (Replaces: W11180155)				$ 45.78
7	W11825505		Tine Row, Fold Down   (Replaces: W11189985)			Immediately	$ 68.67
8	W11179755		Positioner				$ 23.12
9	W11627535		Clip, Pivot   (Replaces: W11179753)				$ 26.48
10	W11180178		Leveler, Adjuster Arm				$ 76.16
11	W11180176		Button, Adjuster Arm		Appelez-nous	-
12	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
13	W11847092		Screw   (Replaces: W11170270)			Immediately	$ 11.75
14	W11373133		Clip, Stemware				$ 28.01
	W11778690		Track, Assembly (right)   (Replaces: W11212734)			Immediately	$ 85.81
	W11180153		Rack Adjuster (right)				$ 109.19
