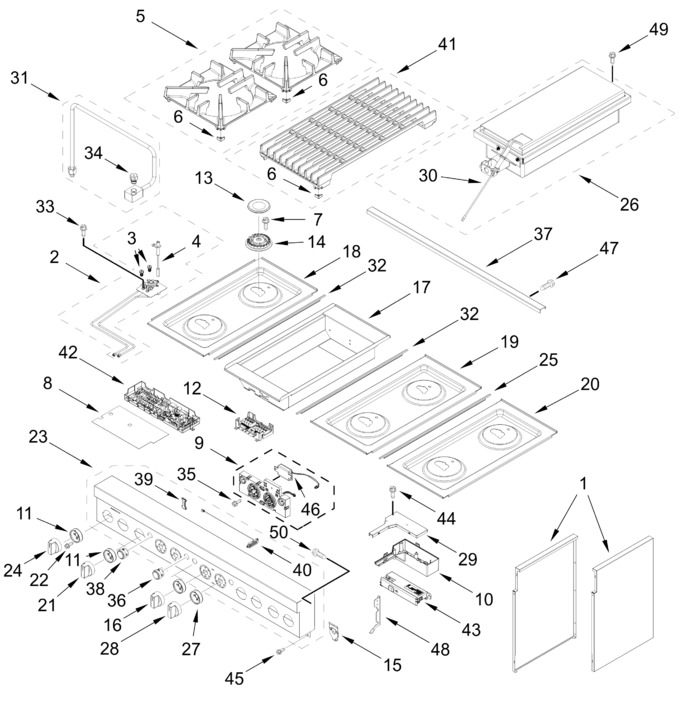

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
2	W11319741		Orifice Holder Assembly   (Replaces: W10892807)				$ 121.66
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter   (Replaces: W11238757)			Immediately	$ 23.48
5	W11515370		Grate Assembly (black, Set Of 2)   (Replaces: W11291176)				$ 394.33
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11492266		Interface, User   (Replaces: W11436323)				$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Bezel (brass)   (Replaces: W11090283)			Immediately	$ 49.29
12	W11317945		Manager, Appliance (expansion)   (Replaces: W10890116)				$ 453.65
13	W11319224		Cap, Burner (black, Set Of 6)   (Replaces: W11121392)			Immediately	$ 252.20
14	W11319683		Spreader, Flame (high)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11596839		Knob, Oven Mode (stainless)   (Replaces: W11496092)				$ 118.01
17	W11328566		Grill Box Assembly   (Replaces: W11174429)		Appelez-nous	-
18	W11316700		Panel, Left Cooktop   (Replaces: W11038237)				$ 502.01
19	W11316701		Panel, Center Cooktop   (Replaces: W11038241)				$ 502.01
20	W11328008		Panel, Right Cooktop   (Replaces: W11038254)				$ 475.25
21	W11791685		Knob, Grill (stainless)   (Replaces: W11560134)		Appelez-nous	-
22	W11509770		Screw   (Replaces: W11328357)				$ 14.23
23	W11444409		Panel, Console   (Replaces: W10878258)				$ 921.44
24	W11785279		Knob, Burner (stainless)   (Replaces: W11560125)				$ 52.49
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W11328568		Grill Burner Assembly   (Replaces: W11120976)				$ 848.94
27	W11317499		Bezel, Oven (stainless)   (Replaces: W10914998)				$ 28.02
28	W11574369		Knob, Oven Temperature (stainless)   (Replaces: W11496091)				$ 118.01
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11328571		Electrode, Grill   (Replaces: W11174598)		Appelez-nous	-
31	W11517686		Grill Orifice Holder Assembly   (Replaces: W11419278)		Appelez-nous	-
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11419282		Orifice, Grill (18k)		Appelez-nous	-
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11320157		Trim, Island   (Replaces: W11156418)		Appelez-nous	-
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
39	W11318856		Light Pipe Assembly   (Replaces: W10896369)				$ 109.35
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	W11515378		Grill Grate Assembly   (Replaces: W11291177)		Appelez-nous	-
42	W11328373		Manager, Appliance (powermax)   (Replaces: W11100272)			Immediately	$ 472.59
43	W11234290		Wifi Module Assembly   (Replaces: W11110768)				$ 179.89
44	7101P62460		Screw		Appelez-nous	-
45	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
46	W11123146		Speaker Assembly   (Replaces: W10568405)				$ 80.93
47	7101P33860		Screw		Appelez-nous	-
48	W10130760		Bracket, Moving Console (left)				$ 75.94
49	7101P43460		Screw		Appelez-nous	-
50	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
	ARI96BA0D36FA6A631E80C7BFCE86BF12CD		(left Center)		Appelez-nous	-
	W11620697		Orifice Holder Assembly   (Replaces: W11505827)		Appelez-nous	-
	ARI86CC442F7E3B2AFAEE580E427DF61ED9		(all But Right Center Rear)		Appelez-nous	-
	ARI03CD409BD699D70C62A402990434B427		(for 6 Cooktop Burners)		Appelez-nous	-
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 74.14
	W11238756		Igniter			Immediately	$ 67.96
	W10892440		Orifice, Main (7.2k)				$ 99.86
	W10892418		Orifice, Main (15.4k)			Immediately	$ 103.03
	W10892429		Orifice, Simmer (2.0k)				$ 99.86
	W11319673		Spreader, Flame (low)   (Replaces: W10892022)			Immediately	$ 229.46
	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	W10130759		Bracket, Moving Console (right)				$ 75.94
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI283693F3486669333C7F1EE938CD8A5B		(right Rear)		Appelez-nous	-
	ARI2DF9F568FCE4D6018097574F1022E13B		(right Center Rear)		Appelez-nous	-
	ARI91512E59DD97B6DE955CDC6C52849EDE		(right Center Front)		Appelez-nous	-
	ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9		(left Rear)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-
	W11327980		Orifice Holder Assembly   (Replaces: W10892724)		Appelez-nous	-
	W11327981		Orifice Holder Assembly   (Replaces: W10892726)		Appelez-nous	-
	W11327982		Orifice Holder Assembly   (Replaces: W10892474)		Appelez-nous	-
	ARI1FACBFA861FECD9D124A08E1EC1C51C5		(for 4 Oven Knobs)		Appelez-nous	-
	ARI6E98DE8FE4911B8A58D1CF32CA9636B7		(for 6 Cooktop Burners And Grill)		Appelez-nous	-
	W11319746		Orifice Holder Assembly   (Replaces: W10892495)				$ 123.91
	ARIEE95D82B7825982DB8027AA1FAF6E9DB		(left Front, Right Center Front, Right Front)		Appelez-nous	-
