View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet Parts
Door Parts
Liner Parts
Optional Parts
Shelf Parts
Unit Parts
New Model Search:

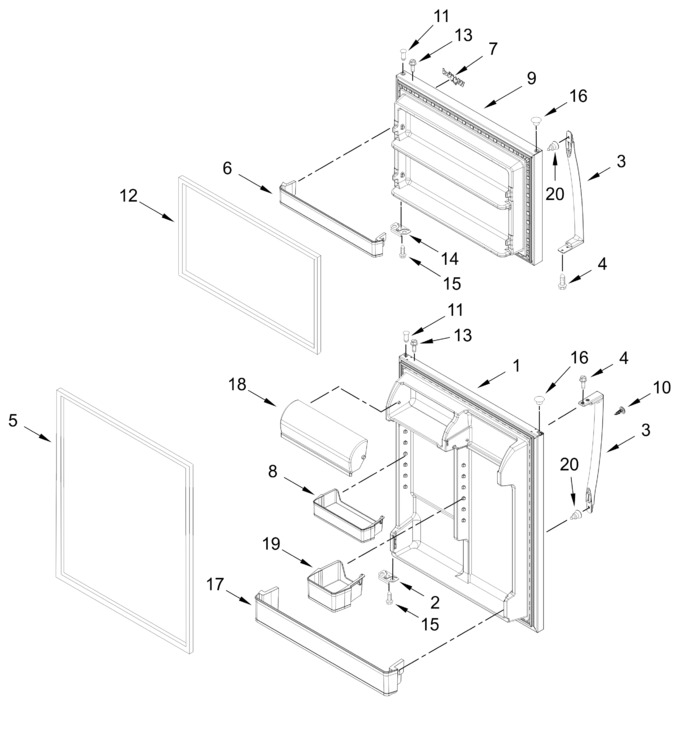

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11778554 | Refrigerator Door, Stainless (includes Door Gasket) |
|
$ 80.67 | |||||
| 2 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 61.93 | |||||
| 3 | W10837029 | Handle, Door (stainless) (Replaces: W10653471) |
|
Immediately | $ 201.54 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 5 | W11784834 | Gasket, Door (grey) (Replaces: W11030683) |
|
Immediately | $ 201.02 | ||||
| 6 | W11807630 | Freezer Door Bin (Replaces: W11750547) |
|
- | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 58.63 | ||||
| 8 | W11807631 | Bin, Rc Door (large) (Replaces: W11750600) |
|
$ 50.84 | |||||
| 9 | W11778552 | Freezer Door, Stainless (includes Door Gasket) |
|
$ 129.49 | |||||
| 10 | W10830982 | Plug, Hole (grey) (Replaces: W10663739) |
|
Immediately | $ 17.59 | ||||
| 11 | W11676573 | Thimble, Top (grey) (Replaces: W10492022) |
|
$ 13.33 | |||||
| 12 | W11574983 | Gasket, Door (grey) (Replaces: W11030682) |
|
Immediately | $ 83.13 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.77 | |||||
| 16 | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 17 | W11807633 | Refrigerator Door Bin (bottom) (Replaces: W11750538) |
|
$ 50.84 | |||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 30.91 | |||||
| 19 | W11807375 | Refrigerator Door Bin (short) (Replaces: W11750604) |
|
$ 50.84 | |||||
| 20 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.12 |
