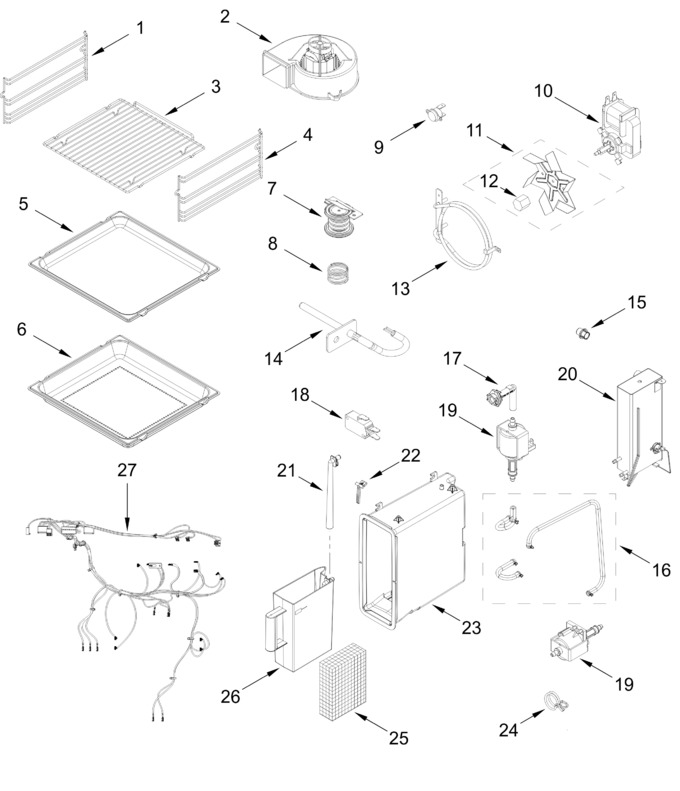

Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11813948		Grid, Rack Left Side   (Replaces: W11813828)		Appelez-nous	-
2	W10586916		Fan, Cooling				$ 353.26
3	W11813947		Rack, Wire Shelf   (Replaces: W11813827)		Appelez-nous	-
4	W11813949		Grid, Rack Right Side   (Replaces: W11813830)		Appelez-nous	-
5	W10577820		Tray, Bake/drip				$ 353.90
6	W10577816		Tray, Steam				$ 363.88
7	W10587885		Gasket, Air Flow		Appelez-nous	-
8	W10587880		Spring, Air Flow		Appelez-nous	-
9	W11512073		Thermostat   (Replaces: W11510588)		Appelez-nous	-
10	W11512467		Motor, Convection Fan   (Replaces: W11510587)		Appelez-nous	-
11	W10586917		Blade, Convection Fan (includes Nut)				$ 48.18
12	W11237447		Nut, Convection Fan   (Replaces: W10781713)				$ 14.72
13	WPW10493735		Heater, Convection Element   (Replaces: W10493735)			Immediately	$ 110.49
14	W11353409		Sensor, Cavity Temperature				$ 82.94
15	W10588572		Gasket, Steam Outlet				$ 98.88
16	W11366439		Tube, Silicon				$ 22.00
17	W10586491		Tubing, Connection Boiler				$ 112.61
18	W11512093		Microswitch   (Replaces: W11511177)			Immediately	$ 67.19
19	W10586915		Pump, Fill And Drain			Immediately	$ 378.78
20	W11353847		Heater, Boiler   (Replaces: W11353385)				$ 407.09
21	W10587540		Pipe, Water Container Fill				$ 28.23
22	W10586492		Sensor, Boiler Temperature				$ 69.77
23	W10586494		Housing, Water Container				$ 200.25
24	W10587851		Clamp, Tubing		Appelez-nous	-
25	W10577833		Sponge				$ 244.62
26	480123100285		. Reservoir, Water Container		Appelez-nous	-
27	W11353395		Harness, Main				$ 284.04
