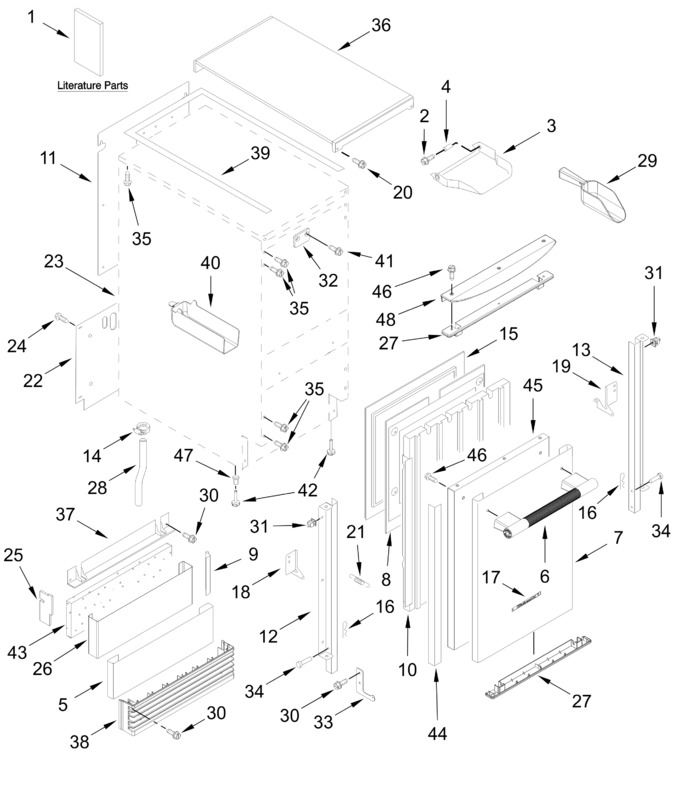

Cabinet, Door And Liner Parts


Control Panel Parts


Evaporator, Grid, And Water Parts


Optional Parts


Pump Parts


Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	3400886		Screw (stainless)				$ 5.65
3	2208354		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 9.93
5	W11296659		Panel, Wrap Lower (stainless)				$ 252.88
6	W11790742		Handle, Door (stainless)   (Replaces: W11768492)		Appelez-nous	-
7	W11368704		Wrap, Exterior Panel (stainless)   (Replaces: W11261635)				$ 622.16
8	W10563026		Panel, Interior		Appelez-nous	-
9	2208596B		Grommet, Edge Guard		Appelez-nous	-
10	W11325208		Insulation   (Replaces: W11024833)		Appelez-nous	-
11	W10218024		Ballast, Back		Appelez-nous	-
12	2217466		Bracket, Door (left Side)		Appelez-nous	-
13	2217465		Bracket, Door (right Side)		Appelez-nous	-
14	W10670799		Clamp, Hose			Immediately	$ 22.38
15	W11624959		Gasket, Door   (Replaces: 2217295)				$ 220.36
16	W11545866		Clip   (Replaces: W10136142)				$ 10.69
17	W11759445		Badge (smoked Chrome)   (Replaces: W11688412)			Immediately	$ 45.29
18	2208425		Hinge (left Side)		Appelez-nous	-
19	2208426		Hinge (right Side)		Appelez-nous	-
20	W11788665		Screw (black)   (Replaces: 8534075)				$ 11.49
21	WP2208570		Spring, Hinge   (Replaces: 2208570)				$ 21.41
22	W11261690		Cover Assembly, Unit		Appelez-nous	-
23	ARIB39461B0806D54B1C192B20B0487C972		Cabinet & Liner (not Serviced)		Appelez-nous	-
24	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
25	2217225		Pad, Foam		Appelez-nous	-
26	2208382B		Panel, Lower (black)		Appelez-nous	-
27	W11413461		Endcap, Door (black)		Appelez-nous	-
28	W10737551		Tube, Drain				$ 66.71
29	W10508276A		Scoop   (Replaces: W10508276)		Appelez-nous	-
30	WP489474		Screw   (Replaces: 489474)			Immediately	$ 7.70
31	WP692400		Screw Grommet   (Replaces: 692400)			Immediately	$ 7.22
32	2208434		Strike, Magnet		Appelez-nous	-
33	2208487		Bracket, Spring		Appelez-nous	-
34	2208417		Pin, Hinge		Appelez-nous	-
35	WP273556		Screw   (Replaces: 357640)			Immediately	$ 7.59
36	W10320118		Top Panel (black)		Appelez-nous	-
37	2208383B		Endcap, Panel (black)		Appelez-nous	-
38	WP2217206B		Grille, Front (black)   (Replaces: 2217206B)				$ 104.65
39	2217296		Gasket, Top Panel		Appelez-nous	-
40	W10557773		Holder, Scoop		Appelez-nous	-
41	8281191		Screw				$ 6.09
42	8193716		Leg, Leveling   (Replaces: 3374849)				$ 80.06
43	2208384		Insulation, Lower Panel		Appelez-nous	-
44	2208595B		Grommet, Edge Guard (black)		Appelez-nous	-
45	2208352B		Panel, Inner Door (black)		Appelez-nous	-
46	WP3400884		Screw (stainless)   (Replaces: 3400884)				$ 7.29
47	3400240		Nut		Appelez-nous	-
48	WP2208452B		Endcap Assembly, Magnet   (Replaces: 2208452B)				$ 103.83
	W11686966		Owners Manual		Appelez-nous	-
