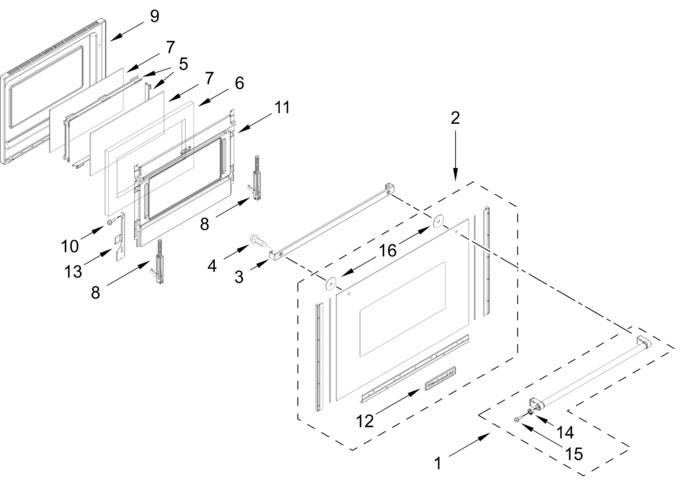

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Chassis Parts
Control Panel Parts
Cooktop Parts
Internal Oven Parts
Lower Door Parts
Optional Parts (not Included)
Upper Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11305113 | Handle Assembly (white) |
|
- | |||||
| 2 | W11600197 | Door Assembly (white) (Replaces: W11528012) |
|
- | |||||
| 3 | WPW10294695 | Bracket, Handle (Replaces: W10294695) |
|
$ 147.02 | |||||
| 4 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 5 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 197.39 | ||||
| 6 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 106.43 | |||||
| 7 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 175.75 | ||||
| 8 | WPW10335434 | Hinge, Door (left) (Replaces: W10335434) |
|
Immediately | $ 102.90 | ||||
| 9 | WPW10292008 | Lining, Door (Replaces: W10292008) |
|
$ 346.35 | |||||
| 10 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 11 | W10340464 | Retainer, Insulation |
|
$ 289.80 | |||||
| 12 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 13 | WPW10272329 | Receiver (left) (Replaces: W10272329) |
|
$ 81.11 | |||||
| 14 | W10846207 | Handle Medallion (red) (Replaces: W10551026) |
|
Immediately | $ 23.14 | ||||
| 15 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.95 | ||||
| 16 | 7109P08460 | Washer, Fiber |
|
- | |||||
| WPW10272328 | Receiver (right) (Replaces: W10272328) |
|
$ 90.04 | ||||||
| WPW10335433 | Hinge, Door (right) (Replaces: W10335433) |
|
$ 104.99 |
