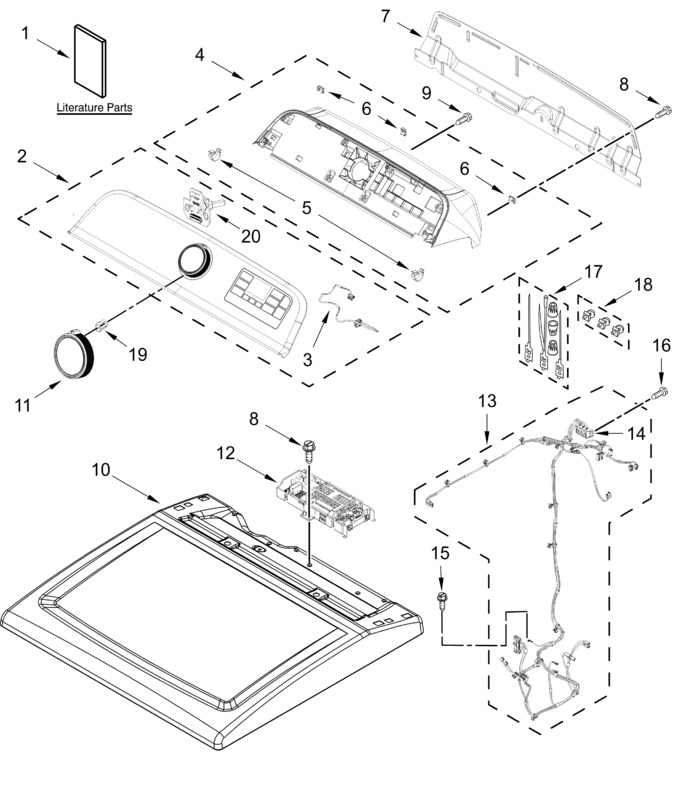

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11790399		Assembly, Fascia   (Replaces: W11680235)				$ 462.63
3	W11790393		Harness, User Interface   (Replaces: W11689280)				$ 302.79
4	W11790398		Assembly, Console (white)   (Replaces: W11677915)			Immediately	$ 80.80
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
7	W11433112		Panel, Rear Console				$ 66.08
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
10	W11641121		Top (white)   (Replaces: W11623537)			Immediately	$ 215.10
11	W11790665		Assembly, Knob   (Replaces: W11663220)				$ 45.27
12	W11847192		Appliance Control Unit (acu)   (Replaces: W11679952)				$ 267.83
13	W11799037		Harness, Main   (Replaces: W11675727)		Appelez-nous	-
14	WP3397659		Terminal Block   (Replaces: 3397659)				$ 24.17
15	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
16	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
18	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
19	W11788153		Clip, Spring   (Replaces: W11778059)		Appelez-nous	-
20	W11754929		Encoder, Hmi		Appelez-nous	-
	W11685601		Energy Guide		Appelez-nous	-
	W11679946		Owners Manual		Appelez-nous	-
	W11677727		Quick Start Guide		Appelez-nous	-
	W11678618		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
