Basket And Tub Parts

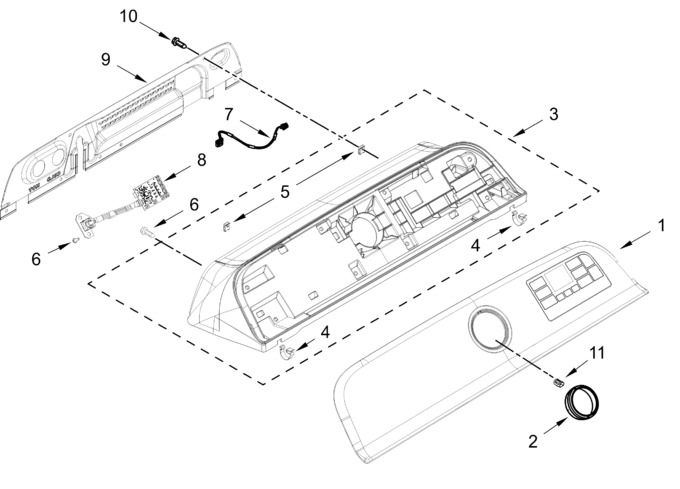

Console Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11798342 | Assembly, Fascia (Replaces: W11680240) |
|
Immediately | $ 462.63 | ||||
| 2 | W11790665 | Assembly, Knob (Replaces: W11663220) |
|
$ 45.27 | |||||
| 3 | W11799228 | Assembly, Console (midnight Steel) (Replaces: W11677920) |
|
$ 151.92 | |||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 5 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 8.13 | |||||
| 6 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 7 | W11797453 | Harness, User Interface (hmi) (Replaces: W11600727) |
|
$ 302.79 | |||||
| 8 | W11754929 | Encoder, Hmi |
|
- | |||||
| 9 | W11129559 | Panel, Console Rear |
|
$ 292.62 | |||||
| 10 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 11 | W11788153 | Clip, Spring (Replaces: W11778059) |
|
- |
