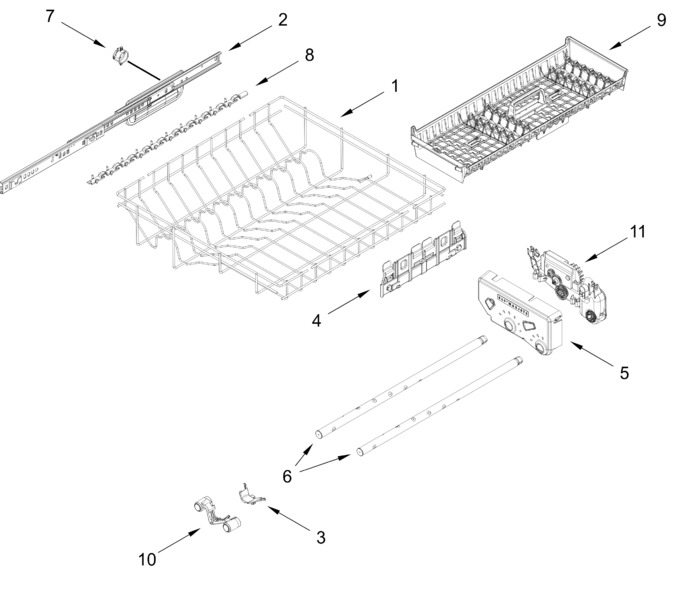

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11800206		Rack, Third Level   (Replaces: W11127727)			Immediately	$ 178.36
2	W11047813		Led Lit Track Assembly (left)				$ 181.15
3	W11573754		Hanger, Tube   (Replaces: W11184071)			Immediately	$ 19.43
4	W11130709		Mount, Dishrack				$ 75.56
5	W11783170		Cover, Wash Tube   (Replaces: W11749485)		Appelez-nous	-
6	W11825823		Tube, Wash   (Replaces: W10831864)				$ 62.00
7	W11545286		Nut, Tub   (Replaces: W10920244)			Immediately	$ 15.48
8	W11202101		Cup Guard		Appelez-nous	-
9	W11820595		Silverware Tray   (Replaces: W11087823)				$ 68.12
10	W11568642		Bracket, Front Hanger   (Replaces: W10830577)			Immediately	$ 17.66
11	W11677712		Drive Box Assembly, Manifold   (Replaces: W10830523)				$ 129.50
	W11047815		Led Lit Track Assembly (right)				$ 181.15
