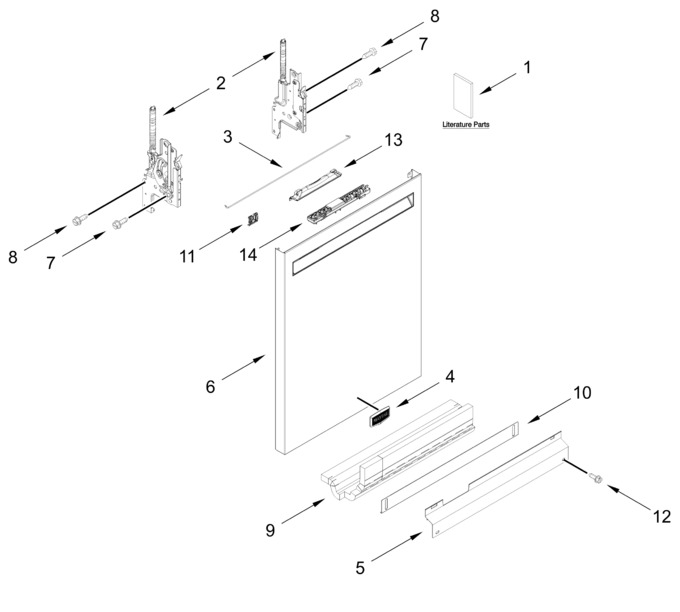

Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Optional Parts (not Included)


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11766666		Arm, Hinge (left)   (Replaces: W11721083)			Immediately	$ 59.16
3	W11377160		Cross Brace, Door				$ 33.36
4	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
5	W11110746		Access Panel (white)				$ 129.96
6	W11659650		Panel, Front (white, Includes Ui Insert, Badge, Barrel Nut, Handle, Ui Housing)   (Replaces: W11594025)				$ 470.52
7	W11676450		Screw   (Replaces: 3400000)				$ 14.76
8	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 76.86
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11467726		Toe Panel (white)				$ 35.77
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	W11632695		Screw (white)   (Replaces: W11438977)			Immediately	$ 14.73
13	W11242123		Handle (white)				$ 39.87
14	W11806851		Housing, Ui   (Replaces: W11491721)				$ 298.65
	W11766665		Arm, Hinge (right)   (Replaces: W11721082)			Immediately	$ 59.16
	W11756689		Tech Sheet		Appelez-nous	-
	W11650513		Energy Guide		Appelez-nous	-
	W11323304		Owners Manual		Appelez-nous	-
