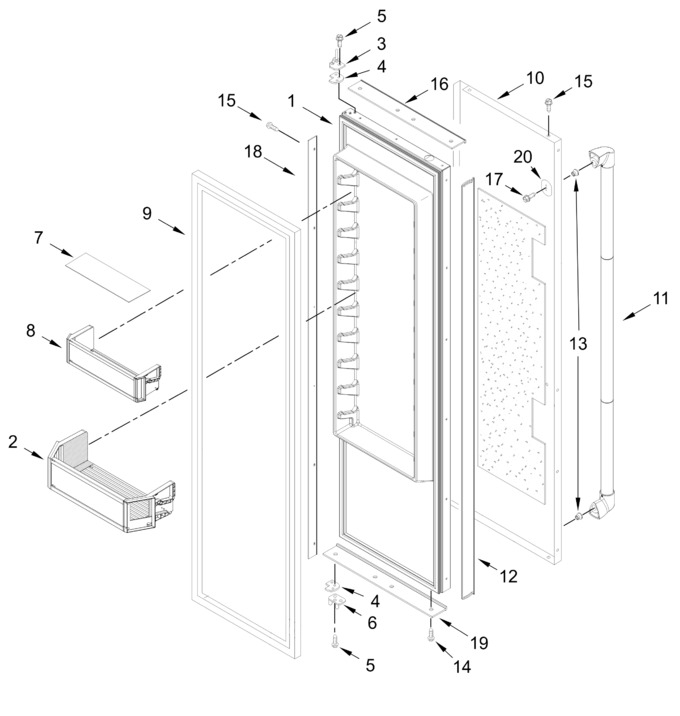

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11797636		Door, Refrigerator   (Replaces: W10783289)				$ 796.04
2	W11450399		Bin, Gallon Door		Appelez-nous	-
3	W11673500		Hinge Assembly, Top   (Replaces: W10485980)			Immediately	$ 117.33
4	W11673500		Spacer, Door Hinge   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 7.77
6	2302878		Hinge Assembly, Bottom			Immediately	$ 81.91
7	W11454935		Mat, Door Bin (includes 1 Gallon And 3 Shallow Mats)		Appelez-nous	-
8	W11450385		Bin, Shallow Door		Appelez-nous	-
9	W10800809		Gasket, Door (black)   (Replaces: W10764833)			Immediately	$ 315.93
10	W11797604		Skin, Rc Door (stainless)   (Replaces: W10756462)				$ 1,355.05
11	W11358123		Handle, Door (stainless)		Appelez-nous	-
12	W10758377		Spacer, Handle Side Door				$ 98.81
13	W11631830		Stud, Handle Mounting   (Replaces: W11564087)				$ 11.52
14	W10759522		Screw (stainless)   (Replaces: 488568)				$ 7.42
15	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
16	W10761892		Spacer, Door Skin (top)		Appelez-nous	-
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
18	W10758378		Spacer, Hinge Side Door		Appelez-nous	-
19	W10761895		Spacer, Door Skin Bottom		Appelez-nous	-
20	W10127710		Plate, Handle Door			Immediately	$ 23.35
	ARI6FD09EDD6DAEBF9F7D7F7CCBDD66D351		Filler (not Serviced-included With Skin)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
