Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11444409 Panel, Console   (Replaces: W10878258) Special Order $ 921.44

2 W11319741 Orifice Holder Assembly   (Replaces: W10892807) Special Order $ 121.66

3 W11643164 Orifice, Main (17.4k)   (Replaces: W10892422) In-Stock Immediately $ 60.97

4 W11573760 Igniter   (Replaces: W11238757) In-Stock Immediately $ 23.48

5 W11515370 Grate Assembly (black, Set Of 2)   (Replaces: W11291176) Special Order $ 394.33

6 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

7 W11766499 Screw   (Replaces: W11323260) In-Stock Immediately $ 12.72

8 W11320149 Barrier, Appliance Manager   (Replaces: W11281269) Special Order $ 130.57

9 W11492275 Interface, User   (Replaces: W11436326) In-Stock Immediately $ 573.94

10 W11320411 Cover, Wifi Outer   (Replaces: W11205795) Appelez-nous -
11 W11316873 Bezel (brass)   (Replaces: W11090283) In-Stock Immediately $ 49.29

12 W11355250 Manager, Appliance (expansion)   (Replaces: W10871065) Special Order $ 451.62

13 W11319224 Cap, Burner (black, Set Of 6)   (Replaces: W11121392) In-Stock Immediately $ 252.20

14 W11319683 Spreader, Flame (high)   (Replaces: W10891987) In-Stock Immediately $ 250.69

15 W11318207 Spring Clip, Range   (Replaces: W11036559) Special Order $ 12.88

16 W11574370 Knob, Oven Mode (stainless)   (Replaces: W11496094) Special Order $ 93.11

17 W11328566 Grill Box Assembly   (Replaces: W11174429) Appelez-nous -
18 W11316700 Panel, Left Cooktop   (Replaces: W11038237) Special Order $ 502.01

19 W11316701 Panel, Center Cooktop   (Replaces: W11038241) Special Order $ 502.01

20 W11328008 Panel, Right Cooktop   (Replaces: W11038254) Special Order $ 475.25

21 W10130760 Bracket, Moving Console (left) Special Order $ 75.94

22 W11791685 Knob, Grill (stainless)   (Replaces: W11560134) Appelez-nous -
23 W10323252 Trim, Island Insert Special Order $ 207.83

24 W11785279 Knob, Burner (stainless)   (Replaces: W11560125) Special Order $ 52.49

25 W10271524 Trim, T-strip (black) Special Order $ 212.34

26 W11328568 Grill Burner Assembly   (Replaces: W11120976) Special Order $ 848.94

27 W11317499 Bezel, Oven (stainless)   (Replaces: W10914998) Special Order $ 28.02

28 W11574369 Knob, Oven Temperature (stainless)   (Replaces: W11496091) Special Order $ 118.01

29 W11320410 Cover, Wifi Inner   (Replaces: W11205794) Appelez-nous -
30 W11328571 Electrode, Grill   (Replaces: W11174598) Appelez-nous -
31 W11517686 Grill Orifice Holder Assembly   (Replaces: W11419278) Appelez-nous -
32 W10291193 Trim, L-strip Appelez-nous -
33 7101P42660 Screw Appelez-nous -
34 W11419282 Orifice, Grill (18k) Appelez-nous -
35 WP3400814 Screw   (Replaces: 3400814) Special Order $ 4.62

36 W11319196 Button Assembly, Oven Start   (Replaces: W11090650) Special Order $ 23.67

37 W11516014 Island Trim   (Replaces: W11476244) Special Order $ 443.60

38 W11318857 Button Assembly, Oven Light   (Replaces: W11090651) Special Order $ 23.81

39 W11318856 Light Pipe Assembly   (Replaces: W10896369) Special Order $ 109.35

40 W11318855 Antenna, Wifi   (Replaces: W11130078) Special Order $ 228.92

41 W11515378 Grill Grate Assembly   (Replaces: W11291177) Appelez-nous -
42 W11620696 Manager, Powermax Appliance   (Replaces: W11543349) Special Order $ 474.72

43 W11234290 Wifi Module Assembly   (Replaces: W11110768) Special Order $ 179.89

44 7101P62460 Screw Appelez-nous -
45 W11591511 Knob, Oven Mode (stainless)   (Replaces: W11496095) Special Order $ 113.64

46 W11620695 Knob, Oven Temperature (stainless)   (Replaces: W11496096) Appelez-nous -
47 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

48 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

49 W11509770 Screw   (Replaces: W11328357) Special Order $ 14.23

50 3196265 Screw   (Replaces: 3400099) Appelez-nous -
51 7101P43460 Screw Appelez-nous -
W11319673 Spreader, Flame (low)   (Replaces: W10892022) In-Stock Immediately $ 229.46

W11620697 Orifice Holder Assembly   (Replaces: W11505827) Appelez-nous -
ARI6E98DE8FE4911B8A58D1CF32CA9636B7 (for 6 Cooktop Burners And Grill) Appelez-nous -
ARIE201EE7BE318B20F5A8E22F5F2B645F9 (for 18 In Oven) Appelez-nous -
W10892440 Orifice, Main (7.2k) Special Order $ 99.86

W10892418 Orifice, Main (15.4k) In-Stock Immediately $ 103.03

W10892429 Orifice, Simmer (2.0k) Special Order $ 99.86

ARI1FACBFA861FECD9D124A08E1EC1C51C5 (for 4 Oven Knobs) Appelez-nous -
W10130759 Bracket, Moving Console (right) Special Order $ 75.94

W11661909 Orifice, Simmer (2.6k)   (Replaces: W10892435) In-Stock Immediately $ 74.14

ARI96BA0D36FA6A631E80C7BFCE86BF12CD (left Center) Appelez-nous -
ARI76BF577D359F4F7B6AC1C45BB9FB0006 (left Front) Appelez-nous -
W11327980 Orifice Holder Assembly   (Replaces: W10892724) Appelez-nous -
W11319746 Orifice Holder Assembly   (Replaces: W10892495) Special Order $ 123.91

ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
ARI91512E59DD97B6DE955CDC6C52849EDE (right Center Front) Appelez-nous -
ARIEE95D82B7825982DB8027AA1FAF6E9DB (left Front, Right Center Front, Right Front) Appelez-nous -
ARI86CC442F7E3B2AFAEE580E427DF61ED9 (all But Right Center Rear) Appelez-nous -
ARI03CD409BD699D70C62A402990434B427 (for 6 Cooktop Burners) Appelez-nous -
ARI2DF9F568FCE4D6018097574F1022E13B (right Center Rear) Appelez-nous -
W11327981 Orifice Holder Assembly   (Replaces: W10892726) Appelez-nous -
W11327982 Orifice Holder Assembly   (Replaces: W10892474) Appelez-nous -
ARI283693F3486669333C7F1EE938CD8A5B (right Rear) Appelez-nous -
ARIA12C7E5D311C54B1AACBC1820DF34957 (right Front) Appelez-nous -
ARI1CEA8328406821DB8179A8C971BDB5B4 (left Rear, Right Rear) Appelez-nous -
W11238756 Igniter In-Stock Immediately $ 67.96

ARI1E01456C21FFBF0D8455E89259237D34 (for 30 In Oven) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

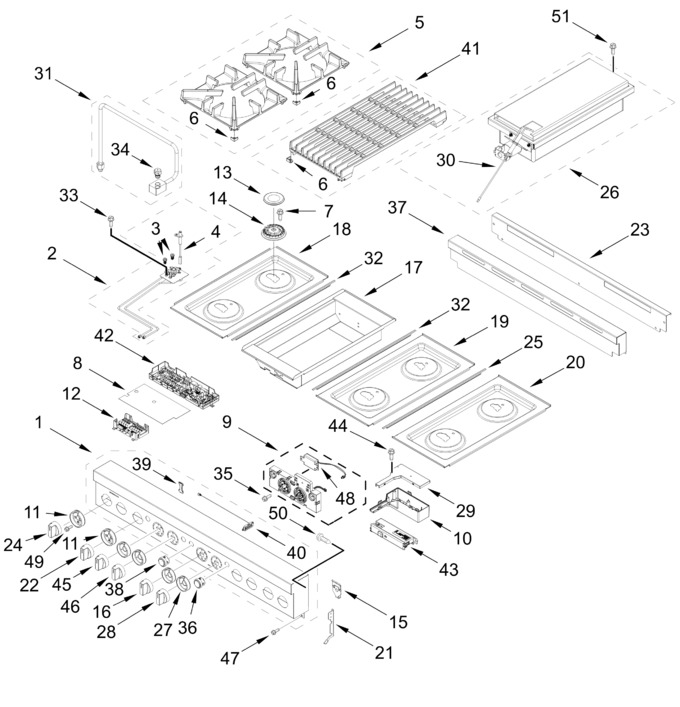

Diagram for JGRP648HL07
