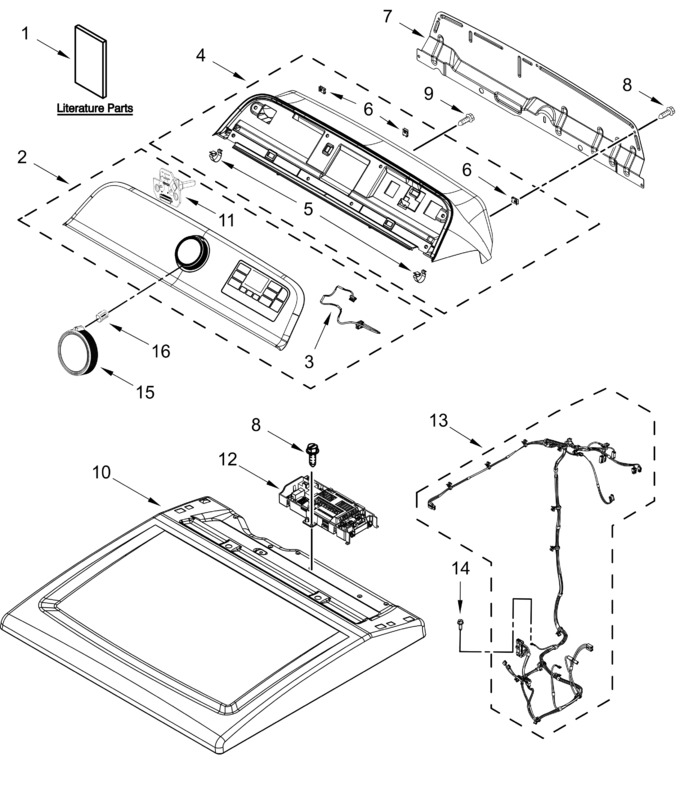

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11790399		Assembly, Fascia   (Replaces: W11680235)				$ 462.63
3	W11790393		Harness, User Interface   (Replaces: W11689280)				$ 302.79
4	W11790391		Assembly, Console (midnight Steel)   (Replaces: W11677917)				$ 246.73
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
7	W11433112		Panel, Rear Console				$ 66.08
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
10	W11790283		Top (midnight Steel)   (Replaces: W11672534)		Appelez-nous	-
11	W11754929		Encoder, Hmi		Appelez-nous	-
12	W11801597		Appliance Control Unit (acu)   (Replaces: W11679954)		Appelez-nous	-
13	W11791547		Harness, Main   (Replaces: W11669659)		Appelez-nous	-
14	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
15	W11790665		Assembly, Knob   (Replaces: W11663220)				$ 45.27
16	W11788153		Clip, Spring   (Replaces: W11778059)		Appelez-nous	-
	W11678618		Tech Sheet		Appelez-nous	-
	W11679955		Owners Manual		Appelez-nous	-
	W11677727		Quick Start Guide		Appelez-nous	-
