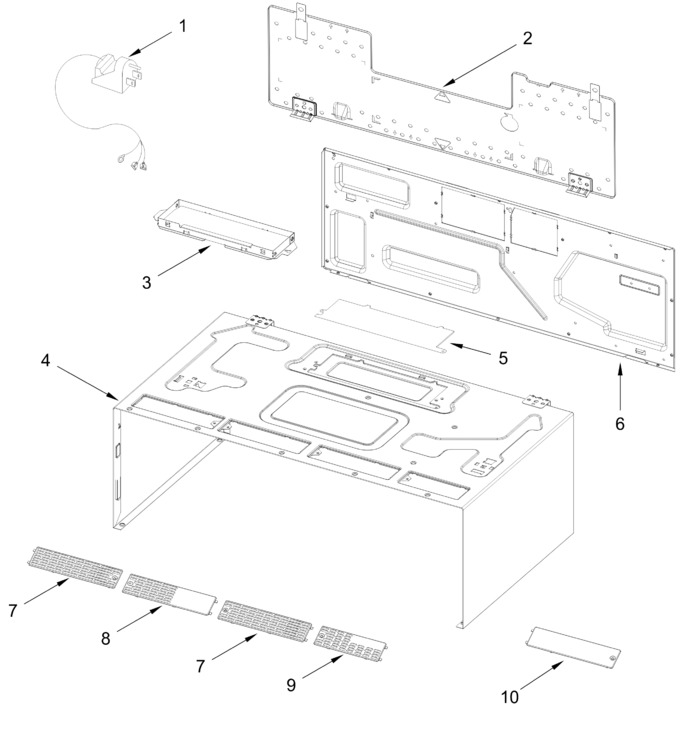

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11187360		Cord, Power			Immediately	$ 112.23
2	W11368557		Plate, Mounting   (Replaces: W11086258)			Immediately	$ 44.69
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 73.04
4	W11475334		Case, Outer (white)		Appelez-nous	-
5	W11420159		Cover, Hood Vent (white)				$ 45.14
6	W11360416		Backplate, Oven				$ 77.48
7	W11086309		Grille, Long Vent (stainless)				$ 114.65
8	W11095781		Grille, Light Access Vent (stainless)				$ 114.65
9	W11086310		Grille, Short Vent (stainless)				$ 114.64
10	W11397086		Cover, Long Vent (stainless)   (Replaces: W11095767)			Immediately	$ 69.06
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
	W11357510		Harness, Hmi To Acu Ntc		Appelez-nous	-
	W11320706		Harness, Acu To Hmi		Appelez-nous	-
	W11320708		Harness, Door Switch To Hmi		Appelez-nous	-
	W11320709		Harness, Main		Appelez-nous	-
	W11306551		Holder, Lamp				$ 34.04
	W11187937		Harness, Ground Wire				$ 25.84
	W11355486		Harness, Door Signal Switch		Appelez-nous	-
	W10821385		Hardware, Installation			Immediately	$ 103.72
