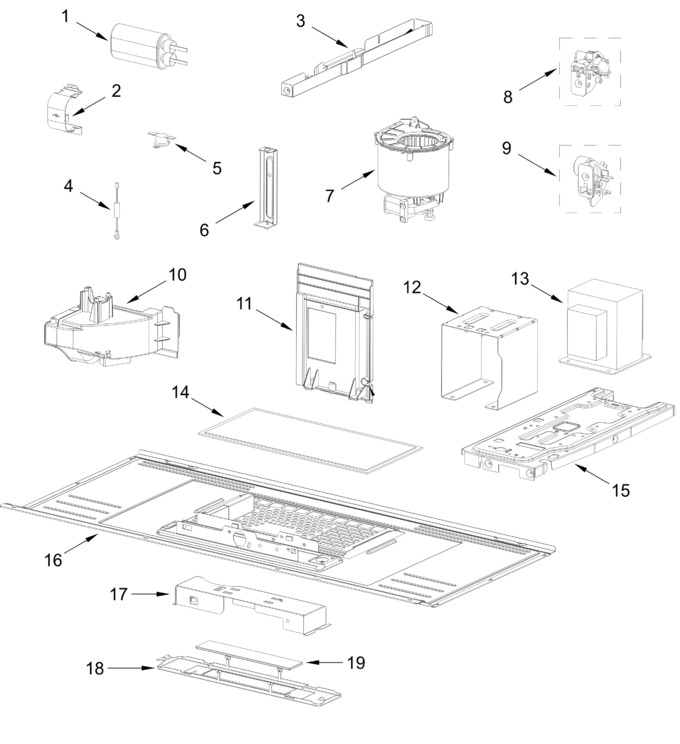

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11818020 | Capacitor, High Voltage (Replaces: W10705215) |
|
- | |||||
| 2 | W10633730 | Bracket, Capacitor |
|
- | |||||
| 3 | W10540718 | Bracket, Cavity |
|
$ 32.61 | |||||
| 4 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 34.86 | ||||
| 5 | W10864742 | Thermostat, Cavity 125/-35 Celcius |
|
$ 88.67 | |||||
| 6 | W10540715 | Bracket, Top Cavity |
|
$ 28.92 | |||||
| 7 | W11371514 | Assembly, Cooling Fan |
|
- | |||||
| 8 | W11795651 | Interlock, Upper (includes Switches) (Replaces: W11795561) |
|
- | |||||
| 9 | W11795652 | Interlock, Lower (includes Switches) (Replaces: W11795562) |
|
- | |||||
| 10 | W10631700 | Air Guide, Magnetron (Replaces: W10533105) |
|
$ 47.06 | |||||
| 11 | W11316476 | Deflector, Air |
|
$ 77.39 | |||||
| 12 | W10712444 | Housing, Damper |
|
$ 96.35 | |||||
| 13 | W11795654 | Transformer, High Voltage (Replaces: W11769077) |
|
- | |||||
| 14 | W11391715 | Filter, Grease (Replaces: W11268912) |
|
Immediately | $ 15.42 | ||||
| 15 | W11350925 | Chassis, Component |
|
$ 129.65 | |||||
| 16 | W11295401 | Panel, Bottom |
|
$ 134.70 | |||||
| 17 | W11752401 | Holder, Led (Replaces: W11698304) |
|
- | |||||
| 18 | W11753076 | Holder, Lamp |
|
- | |||||
| 19 | W11662697 | Light Strip, Led (Replaces: W11573514) |
|
$ 44.42 |
