SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer Parts


Optional Parts (not Included)

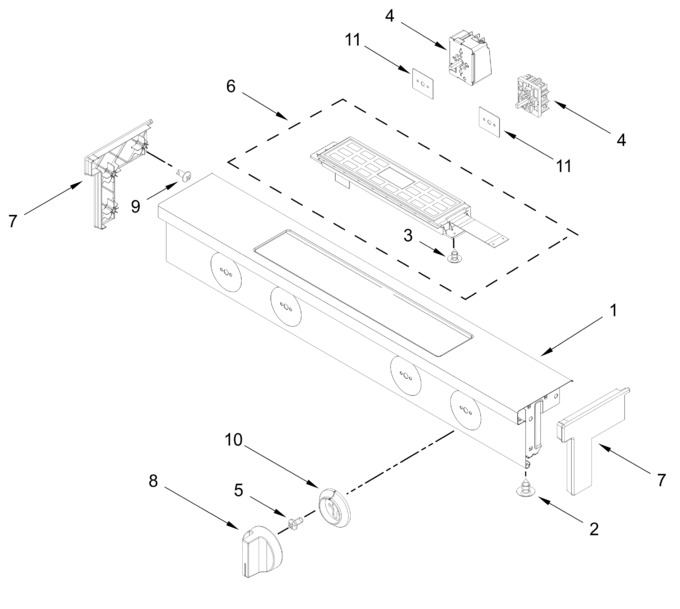

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11784069		Console (black)   (Replaces: W11698865)				$ 409.15
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
3	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
4	W10857622		Switch, Infinite   (Replaces: W10437092)			Immediately	$ 211.69
5	W11846982		Screw   (Replaces: W10498399)				$ 11.75
6	W11812067		User Interface   (Replaces: W11688265)			Immediately	$ 465.97
7	W11770979		Console, Endcap (black, Left)   (Replaces: W11420182)				$ 67.37
8	W11729947		Knob (single, Black)   (Replaces: W11636063)		Appelez-nous	-
9	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
10	W11729943		Bezel (black)   (Replaces: W11635853)				$ 62.97
11	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
	W11784070		Knob (triple, Black)   (Replaces: W11735036)		Appelez-nous	-
	W11729944		Knob (dual, Black)   (Replaces: W11636064)		Appelez-nous	-
	W11770980		Console, Endcap (black, Right)   (Replaces: W11420180)		Appelez-nous	-
	W10911303		Switch, Infinite   (Replaces: W10578768)			Immediately	$ 104.64
	W11129442		Switch, Infinite   (Replaces: W10437097)			Immediately	$ 100.57
	ARI1CEA8328406821DB8179A8C971BDB5B4		(left Rear, Right Rear)		Appelez-nous	-
	ARIA12C7E5D311C54B1AACBC1820DF34957		(right Front)		Appelez-nous	-
	ARI76BF577D359F4F7B6AC1C45BB9FB0006		(left Front)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
