SELECT A DIAGRAM

Diagram for Burner Box Parts
Burner Box Parts

Diagram for Chassis Parts
Chassis Parts

Diagram for Cooktop, Burner And Grate Parts
Cooktop, Burner And Grate Parts

Diagram for Internal Oven Parts
Internal Oven Parts

No Diagram Image Available
Optional Parts (not Included)

Diagram for Oven Door Parts
Oven Door Parts

Diagram for Oven Parts
Oven Parts

Diagram for Venting Parts
Venting Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11333179 Panel, Left Cabinet Side   (Replaces: W11106881) Special Order $ 419.69

2 W11333305 Orifice Holder Assembly   (Replaces: W10892793) Special Order $ 125.39

3 W11643164 Orifice, Main (17.4k)   (Replaces: W10892422) In-Stock Immediately $ 60.97

4 W11573760 Igniter   (Replaces: W11238757) In-Stock Immediately $ 23.48

5 W11515370 Grate Assembly (black, Set Of 2)   (Replaces: W11291176) Special Order $ 394.33

6 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

7 W11766499 Screw   (Replaces: W11323260) In-Stock Immediately $ 12.72

8 W11320149 Barrier, Appliance Manager   (Replaces: W11281269) Special Order $ 130.57

9 W11492269 User Interface   (Replaces: W11436324) In-Stock Immediately $ 573.94

10 W11320411 Cover, Wifi Outer   (Replaces: W11205795) Appelez-nous -
11 W11316873 Bezel (brass)   (Replaces: W11090283) In-Stock Immediately $ 49.29

12 W11234290 Wifi Module Assembly   (Replaces: W11110768) Special Order $ 179.89

13 W11319224 Cap, Burner (black, Set Of 6)   (Replaces: W11121392) In-Stock Immediately $ 252.20

14 W11319683 Spreader, Flame (high)   (Replaces: W10891987) In-Stock Immediately $ 250.69

15 W11318207 Spring Clip, Range   (Replaces: W11036559) Special Order $ 12.88

16 W11596839 Knob, Oven Mode (stainless)   (Replaces: W11496092) Special Order $ 118.01

17 W11334164 Manager, Appliance (powermax)   (Replaces: W11100267) In-Stock Immediately $ 470.45

18 W11316700 Panel, Left Cooktop   (Replaces: W11038237) Special Order $ 502.01

19 W11316701 Panel, Center Cooktop   (Replaces: W11038241) Special Order $ 502.01

20 W11328008 Panel, Right Cooktop   (Replaces: W11038254) Special Order $ 475.25

21 W10130760 Bracket, Moving Console (left) Special Order $ 75.94

22 W11509770 Screw   (Replaces: W11328357) Special Order $ 14.23

23 W11715959 Console Panel   (Replaces: W10878252) Special Order $ 1,069.60

24 W11785279 Knob, Burner (stainless)   (Replaces: W11560125) Special Order $ 52.49

25 7101P62460 Screw Appelez-nous -
26 W11318856 Light Pipe Assembly   (Replaces: W10896369) Special Order $ 109.35

27 W11317499 Bezel, Oven (stainless)   (Replaces: W10914998) Special Order $ 28.02

28 W11574369 Knob, Oven Temperature (stainless)   (Replaces: W11496091) Special Order $ 118.01

29 W11320410 Cover, Wifi Inner   (Replaces: W11205794) Appelez-nous -
30 W11318857 Button Assembly, Oven Light   (Replaces: W11090651) Special Order $ 23.81

31 W11156416 Trim, Island Special Order $ 249.31

32 W10271524 Trim, T-strip (black) Special Order $ 212.34

33 7101P42660 Screw Appelez-nous -
34 W11319196 Button Assembly, Oven Start   (Replaces: W11090650) Special Order $ 23.67

35 WP3400814 Screw   (Replaces: 3400814) Special Order $ 4.62

36 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

37 W11318855 Antenna, Wifi   (Replaces: W11130078) Special Order $ 228.92

38 7101P33860 Screw Appelez-nous -
39 3196265 Screw   (Replaces: 3400099) Appelez-nous -
40 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

ARI1CEA8328406821DB8179A8C971BDB5B4 (left Rear, Right Rear) Appelez-nous -
ARI03CD409BD699D70C62A402990434B427 (for 6 Cooktop Burners) Appelez-nous -
ARI5D10814EA01143EB5BE4EE5A9E8F71F6 (center Front) Appelez-nous -
ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 (center Rear) Appelez-nous -
ARI953D0CD9882CCDFCDBAEB8406738A4EF (left Front, Left Rear, Right Front, Right Rear) Appelez-nous -
W11580024 Igniter   (Replaces: W11238758) In-Stock Immediately $ 23.66

W11238756 Igniter In-Stock Immediately $ 67.96

ARI76BF577D359F4F7B6AC1C45BB9FB0006 (left Front) Appelez-nous -
ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
W11319740 Orifice Holder Assembly   (Replaces: W10892810) Special Order $ 122.67

W11334714 Orifice Holder Assembly   (Replaces: W10892482) Special Order $ 126.79

W10892440 Orifice, Main (7.2k) Special Order $ 99.86

ARI0979B843B3C0413C561E0EF651E24C4F (all Except Center Rear) Appelez-nous -
W11333306 Orifice Holder Assembly   (Replaces: W10892494) In-Stock Immediately $ 127.98

W10892418 Orifice, Main (15.4k) In-Stock Immediately $ 103.03

W10892429 Orifice, Simmer (2.0k) Special Order $ 99.86

W11319673 Spreader, Flame (low)   (Replaces: W10892022) In-Stock Immediately $ 229.46

ARI283693F3486669333C7F1EE938CD8A5B (right Rear) Appelez-nous -
W10130759 Bracket, Moving Console (right) Special Order $ 75.94

W11620690 Orifice Holder Assembly   (Replaces: W11505831) Appelez-nous -
W11661909 Orifice, Simmer (2.6k)   (Replaces: W10892435) In-Stock Immediately $ 74.14

ARI1CEAAC8290BEF7A8702FF0CAA10D9AD0 (left Front, Center Front, Right Front) Appelez-nous -
ARIA12C7E5D311C54B1AACBC1820DF34957 (right Front) Appelez-nous -
W11334712 Orifice Holder Assembly   (Replaces: W10892731) In-Stock Immediately $ 71.63

W11333303 Panel, Right Cabinet Side   (Replaces: W11106880) Special Order $ 421.41


    View Diagram in Separate Window     Print Icon   Print Part List

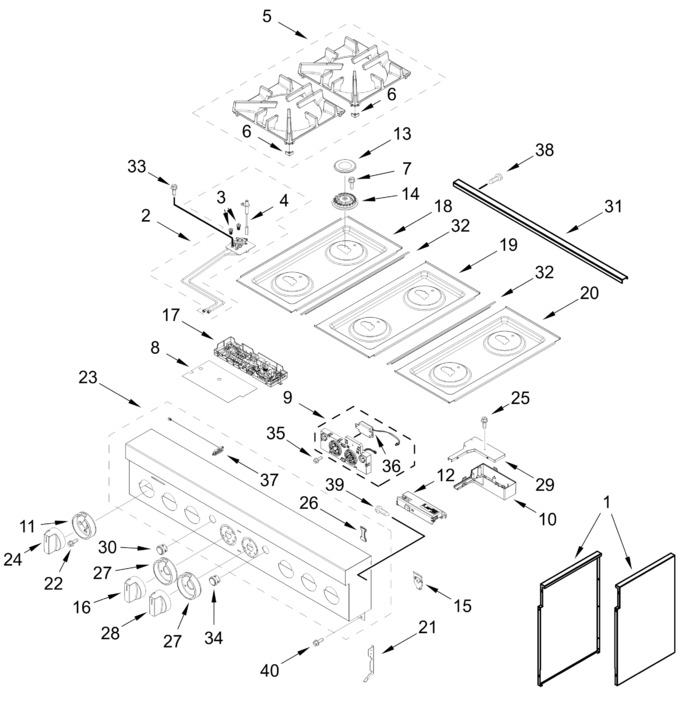

Diagram for JDRP436HL03
